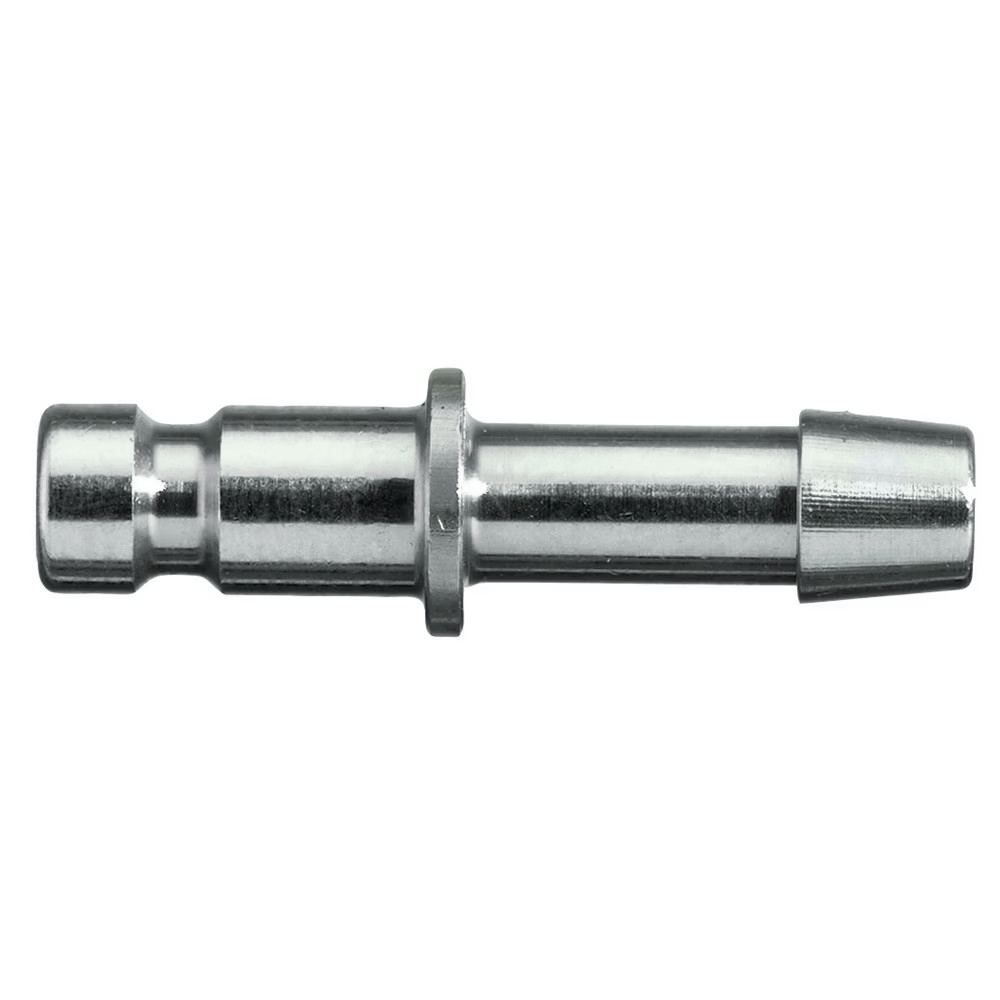

9085 20 05 by Parker | Legris Plug Quick Disconnect | 5mm Hose Barb | 22mm Length | Straight | Nickel-Plated Brass | Pack of 5

9085 20 05 by Parker | Legris Plug Quick Disconnect | 5mm Hose Barb | 22mm Length | Straight | Nickel-Plated Brass | Pack of 5

Sale price$10.83

by Parker Hannifin
Series 20 - Brass/Steel:9085 Plug without valve, Hose Barb

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–39 $10.18
40–79 $9.21
80+ $8.12
Discounts applied in cart/checkout.

Product Data:

Series:
  • 20 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Series 20 - Brass/Steel Series: Single Shut-Off Mini Industrial coupling with internationally used profile. Frequent use in medical technology and chemistry/pharmacy. Coupling system with single-hand operation. Wide range of applications with different media.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Brass
  • Plug: Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 165 Nl/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 1.5 l/min. (Pressure dop 0.5 bar)
Part Number A L L1 D Kg
9085 20 03 3 mm 24 mm 13 mm 7 mm .002 Kg
9085 20 05 5 mm 22 mm 13 mm 9 mm .0045 Kg
