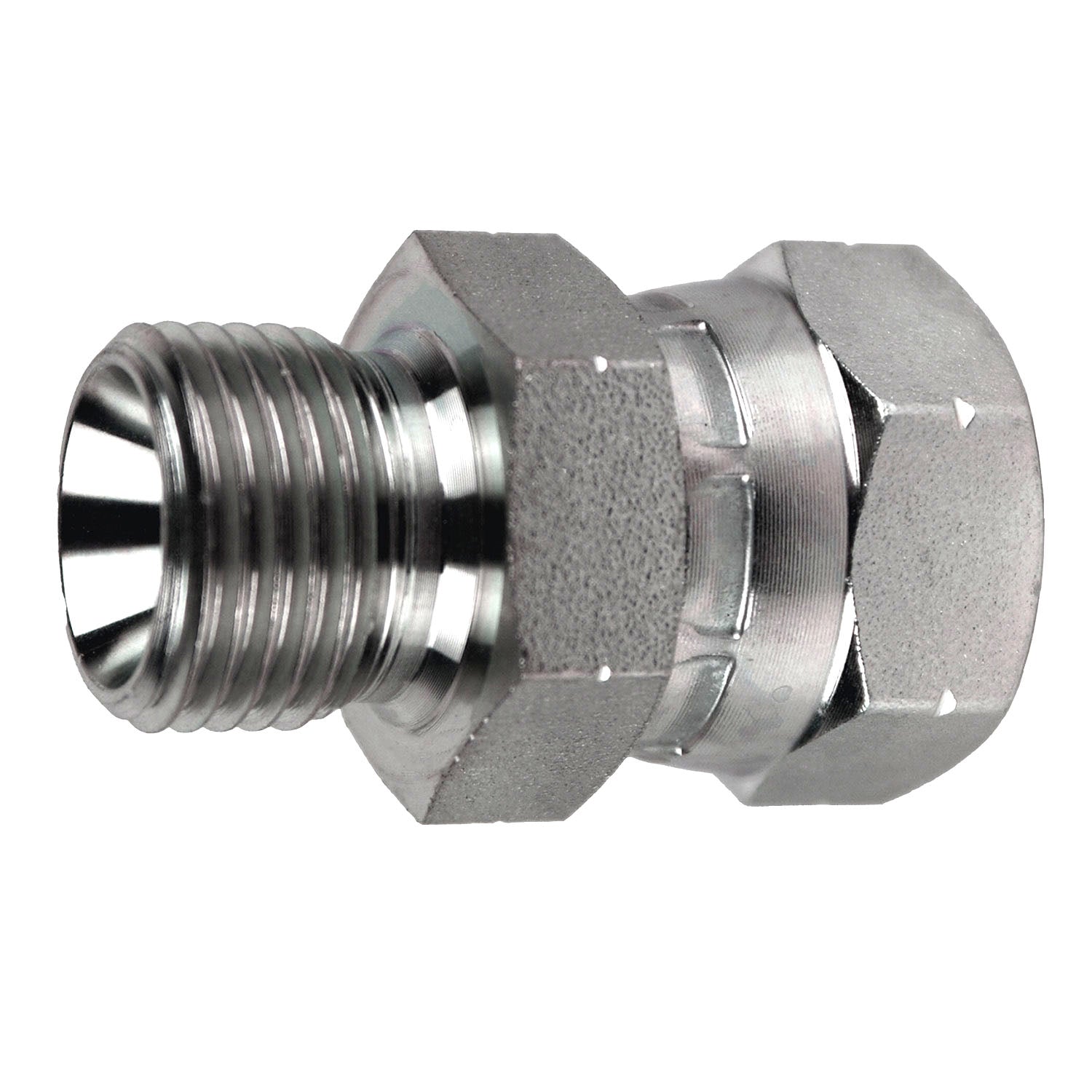

9024-04-04 by Midland | Hydraulic Adapter | 1/4" Male BSPP x 1/4" Female BSPP Swivel | Steel
Minimum Order Quantity: 5 Units
Midland Industries
Hydraulic Adapters: Male BSPP x Female BSPP Swivel - Steel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $3.75 |
| 40–79 | $3.39 |
| 80+ | $2.99 |
Discounts applied in cart/checkout.
Product Data:
Ends Configuration:
Material(s):
Special Properties:
| Technical Info: | |||
|---|---|---|---|
| Part Number | Male BSPP | Male BSPP Thread |
Female BSPP Swivel | Female BSPP Swivel Thread |
|---|---|---|---|---|
| 9024-02-04 | 1/8" | 1/8-28 | 1/4" | 1/4-19 |
| 9024-02-06 | 1/8" | 1/8-28 | 3/8" | 3/8-19 |
| 9024-04-02 | 1/4" | 1/4-19 | 1/8" | 1/8-28 |
| 9024-04-04 | 1/4" | 1/4-19 | 1/4" | 1/4-19 |
| 9024-04-06 | 1/4" | 1/4-19 | 3/8" | 3/8-19 |
| 9024-04-08 | 1/4" | 1/4-19 | 1/2" | 1/2-14 |
| 9024-04-12 | 1/4" | 1/4-19 | 3/4" | 3/4-14 |
| 9024-06-02 | 1/4" | 1/4-19 | 1/2" | 1/2-14 |
| 9024-06-04 | 3/8" | 3/8-19 | 1/4" | 1/4-19 |
| 9024-06-06 | 3/8" | 3/8-19 | 3/8" | 3/8-19 |
| 9024-06-08 | 3/8" | 3/8-19 | 1/2" | 1/2-14 |
| 9024-06-12 | 3/8" | 3/8-19 | 3/4" | 3/4-14 |
| 9024-08-04 | 1/2" | 1/2-14 | 1/4" | 1/4-19 |
| 9024-08-06 | 1/2" | 1/2-14 | 3/8" | 3/8-19 |
| 9024-08-08 | 1/2" | 1/2-14 | 1/2" | 1/2-14 |
| 9024-08-10 | 1/2" | 1/2-14 | 5/8" | 5/8-14 |
| 9024-08-12 | 1/2" | 1/2-14 | 3/4" | 3/4-14 |
| 9024-12-04 | 3/4" | 3/4-14 | 1/4" | 1/4-19 |
| 9024-10-08 | 5/8" | 5/8-14 | 1/2" | 1/2-14 |
| 9024-10-10 | 5/8" | 5/8-14 | 5/8" | 5/8-14 |
| 9024-10-12 | 5/8" | 5/8-14 | 3/4" | 3/4-14 |
| 9024-12-06 | 3/4" | 3/4-14 | 3/8" | 3/8-19 |
| 9024-12-08 | 3/4" | 3/4-14 | 1/2" | 1/2-14 |
| 9024-12-10 | 3/4" | 3/4-14 | 5/8" | 5/8-14 |
| 9024-12-12 | 3/4" | 3/4-14 | 3/4" | 3/4-14 |
| 9024-12-16 | 3/4" | 3/4-14 | 1" | 1-11 |
| 9024-16-08 | 1" | 1-11 | 1/2" | 1/2-14 |
| 9024-16-10 | 1" | 1-11 | 5/8" | 5/8-14 |
| 9024-16-12 | 1" | 1-11 | 3/4" | 3/4-14 |
| 9024-16-16 | 1" | 1-11 | 1" | 1-11 |
