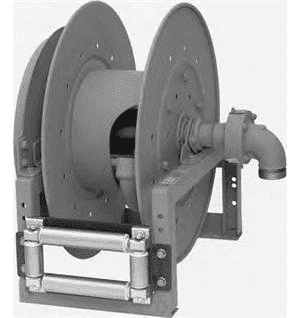

922-23-24B by Hannay | #44-15 | 900 Series | Spring Rewind Reel

922-23-24B by Hannay | #44-15 | 900 Series | Spring Rewind Reel

Sale price$1,744.39



900 Spring Rewind Reels To handle 1-1/4" or 1-1/2" I.D. hose.
Buy More, Save More!
Quantity Price Each
4–7 $1,639.73
8–14 $1,569.95
15+ $1,395.51
Discounts applied in cart/checkout.
Applications:
  • Bulk Transfer
  • Fuel Dispensing
  • Suction/Discharge
Features:
  • Rollformed channel frame construction.
  • Non sparking ratchet assembly.
  • Declutching arbor to prevent damage from reverse winding.
  • Standard inlet 90° swivel joint 1-1/2" female NPT threads and 2" victaulic groove.
  • Standard outlet 1-1/2" female NPT threads.
  • Pressures to 600 psi (41 bar).
  • Temperatures from -60 deg. F to +175 deg. F (-51 deg. C to +79 deg. C).
  • 4-way roller assembly.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1-1/4" 1-1/2"
O.D. (in) 1-13/16" 2-1/16" A B D E F G H X Y
922-23-24B 40' length 25' length 104 lbs. 15.25" 10" 23.25" 25.25" 24" 23.88" 12.5" 10.5" 20"
920-25-26A 50' length 40' length 127 lbs. 13.25" 8" 25" 27" 22.75" 25.88" 13.5" 8.5" 21.75"
922-30-31A 75' length 50' length 156 lbs. 15.25" 10" 28.5" 30.5" 24.75" 31.38" 17" 10.5" 25.25"

Product Data:

Series:
  • 900 Series

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
