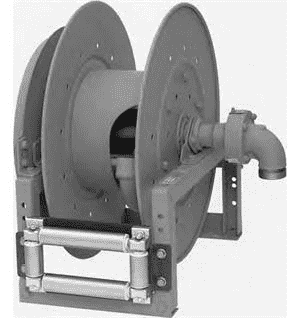

920-25-26A by Hannay | #44-19 | 900 Series | Spring Rewind Reel

920-25-26A by Hannay | #44-19 | 900 Series | Spring Rewind Reel

Sale price$2,089.97



900 Spring Rewind Reels To handle 1-1/4" or 1-1/2" I.D. hose.
Buy More, Save More!
Quantity Price Each
4–7 $1,964.57
8–14 $1,880.97
15+ $1,671.98
Discounts applied in cart/checkout.

Product Data:

Series:
  • 900 Series
Applications:
  • Bulk Transfer
  • Fuel Dispensing
  • Suction/Discharge
Features:
  • Rollformed channel frame construction.
  • Non sparking ratchet assembly.
  • Declutching arbor to prevent damage from reverse winding.
  • Standard inlet 90° swivel joint 1-1/2" female NPT threads and 2" victaulic groove.
  • Standard outlet 1-1/2" female NPT threads.
  • Pressures to 600 psi (41 bar).
  • Temperatures from -60 deg. F to +175 deg. F (-51 deg. C to +79 deg. C).
  • 4-way roller assembly.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1-1/4" 1-1/2"
O.D. (in) 1-13/16" 2-1/16" A B D E F G H X Y
922-23-24B 40' length 25' length 104 lbs. 15.25" 10" 23.25" 25.25" 24" 23.88" 12.5" 10.5" 20"
920-25-26A 50' length 40' length 127 lbs. 13.25" 8" 25" 27" 22.75" 25.88" 13.5" 8.5" 21.75"
922-30-31A 75' length 50' length 156 lbs. 15.25" 10" 28.5" 30.5" 24.75" 31.38" 17" 10.5" 25.25"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
