8R5-8FJ90 by Couplamatic | R5 Reusable Coupling | 13/32" Hose ID x 3/4-16 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

8R5-8FJ90 by Couplamatic | R5 Reusable Coupling | 13/32" Hose ID x 3/4-16 Thread Size JIC 37° Female Swivel | Straight | Trivalent Zinc Plating

Sale price$29.22
Buy more, save moreDiscounts applied in cart/checkout.
Reusable — Field Attachable

6R5 Reusable Coupling — JIC 37°, Female Swivel, Straight

6R5 is the JIC 37°, Female Swivel, Straight configuration of the Reusable Coupling, terminating 100R1 and 100R2 thin cover hose, or 100R5 textile cover hose, depending on the series.

1

What are the main product features?
  • Non-Mandrel and No Skive
  • Trivalent Zinc Plating
  • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
  • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
  • Field attachable — assembles with hand tools; no crimp machine needed.
  • Reusable — the coupling can be removed and reinstalled on a new length of hose.
  • Ideal for field repair — keeps equipment running where a crimper is not available.
2

Which sizes are available?

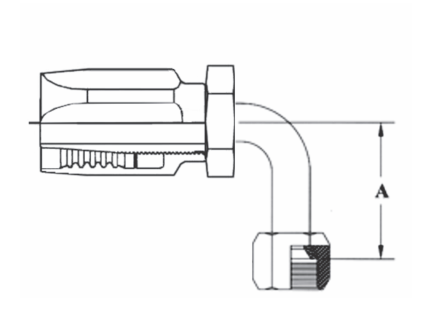

Part Number Hose ID Hose Dash Size Thread Size Tube OD A-DropInches Hose Type
4R5-4FJ90 3/16" -04 7/16-20 1/4" 0.69" 100R5
6R5-6FJ90 5/16" -06 9/16-18 3/8" 0.84" 100R5
8R5-8FJ90 13/32" -08 3/4-16 1/2" 1.09" 100R5

Additional Product Data:

Series:
  • Reusable Fitting Series
Shape:

90 Degree

Ends Configuration:
  • 1/2in Female JIC
  • 13/32in Reusable Hose End
