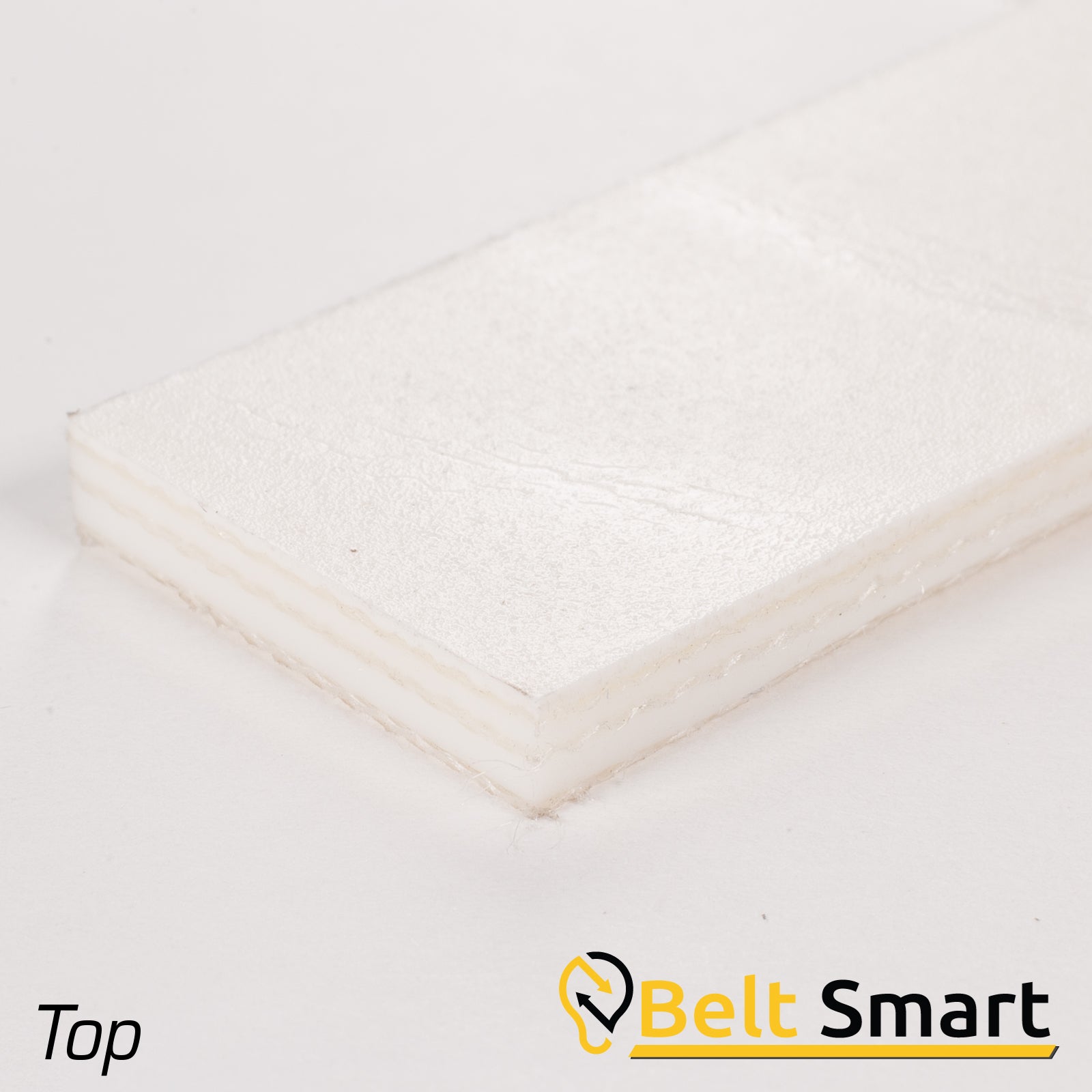

BS008C - #8c Beltservice 3 Ply Poly 150 White RMV COS Conveyor Belt
Request a custom quote for Conveyor Belt Assemblies by providing detailed information in the Contact Form below.

Contact Us
Need a Conveyor Belt?
Please provide as much detail you can on your use case and one of our agents will respond ASAP
| Applications: | |||
|---|---|---|---|
|
|||
| Features: | |||
|
|||
| Specifications: | |||
|
| 2 Ply Poly 100 White RMV COS Pt No.: 8b |
3 Ply Poly 150 White RMV COS Pt No.: 8c |
|
|---|---|---|
| Thickness | 1/8" | 9/64" |
| Covers | 3/64" x FS | |
| Carcass | 50 lbs. per Ply Polyester | |
| Working Tension per inch Width |
100 lbs. | 150 lbs. |
| Approx. Weight lbs per inch Width |
.062 lbs. | .080 lbs. |
| Min. Pulley Diameter | 2" | 3" |
| Temperature Range | 0 deg. F / 180 deg. F | |
| Clipper Lace | #1 | #2 |
| Alligator Lace | #7 | #15 |
