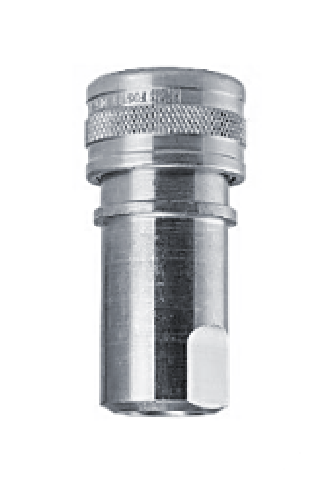

8DSF8-SS Breco by Foster | DS Series | Two Way Shut-Off | Quick Disconnect | 1" Socket x 1" Female NPT Thread | Straight | 303 Stainless Steel

8DSF8-SS Breco by Foster | DS Series | Two Way Shut-Off | Quick Disconnect | 1" Socket x 1" Female NPT Thread | Straight | 303 Stainless Steel

Sale price$285.45

Foster Quick Disconnects - FHK & DS Series 1" Two Way Shut-Off, Plugs and Sockets - Breco
Buy More, Save More!
Quantity Price Each
5–14 $268.32
15–29 $242.63
30+ $214.09
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Breco
Series:
  • DS Series
Shape:

Straight
Interchange:
  • Compatible with ISO 7241-1, Series B.
Applications:
  • FHK Series sockets incorporate valves in both socket and plug halves to prevent fluid loss when the socket is disconnected. These sockets are normally referred to as "hydraulic couplings", but they are used extensively with other media where objectionable. The FHK Series sockets are available in ROHS compliant steel and brass.
Features:
  • Type: FHK, Two-Way Shutoff , Both socket and plug are sealed at disconnect.
  • Operation: Manual - Socket sleeve must be manually retracted to connect and disconnect.
  • Seal Compound: Standard seals are Buna-N.
  • Interchangeability: Standard, most widely used, industrial interchange design. Within each series, only sockets and plugs of the same size will couple to gether. Compatible with ISO 7241-1, Series B.
  • Ordering information: FHK Series couplings are available in ROHS compliant plated steel, brass, and 303 Stainless as standard. Brass couplings have double O-Ring seals (excluding 1/8") and stainless locking balls. Standard seals are Buna-N (Nitrile). Consult factory for optional seals.
  • Vacuum Service: 27" Hg. maximum Rated pressures as defined by ANSI/B93.2-1986 based on 4:1 Safety Factor and non-shock service.
  • NOTE: Only Sockets & Plugs with same prefix digits connect together. Example: 25FS & 25MPB
    • 1 ISO B, Hardened plugs and sleeves constructed from solid bar stock ensures long service life and maximum resistance to damage from hydraulic and mechanical shock.
    • 2 High flow capacity
    • 3 Foster's conical valve with its 360 deg. metal to metal valve stop maintains valve alignment and ensures that poppets open fully every time.
    • 4 Captive valve seal ensures "bubble tight" poppet sealing since seal is positively captured by the metal poppet to minimize seal washout or damage from high fluid velocity.
    • 5 Ball locking mechanism ensures reliable connections every time. Many ball bearings distribute the load while providing alignment and excellent swiveling action to reduce hose torque and prolong hose life.
    • 6 Broad range of metals and seal materials allow the use of most fluids.
Female CouplerPart Number Brand Male PlugPart Number Socket Dust Plug Thread Description
H8S Foster K8S K8B K8S/S H8DP B8DP 1" Steel
8DSF8-S Breco DS8F8-S - 1" Steel
H8S-101 Foster - - 1" Steel w/Viton Seal
H8SLV Foster - - 1" Steel Less Valve
H8B Foster K8S K8B K8S/S H8DP B8DP 1" Brass
8DSF8-B Breco - BH8-66M 1" Brass
H8B-101 Foster - - 1" Brass, w/Viton Seal
H8B-103 Foster - - 1" Brass, w/Ethylene Propylene Seal
H8S/S Foster K8S K8B K8S/S H8DP B8DP 1" 303 Stainless Steel
8DSF8-SS Breco DS8F8-SS - 1" 303 Stainless Steel
H8S/S-101 Foster - - 1" 303 Stainless, w/Viton Seal
H8S/S-103 Foster - - 1" 303 Stainless, w/EPDM Seal
BLH8S Foster - - 1" Steel Ball Lock
BLH8B Foster - - 1" Brass Ball Lock
BLH8S/S Foster - - 1" 303 Stainless Ball Lock
H8S16 Foster K8S16 H8DP16 1-5/16-12* Steel
BLH8S16 Foster - - 1-5/16-12* Steel Ball Lock
* SAE straight thread O-ring seal boss
