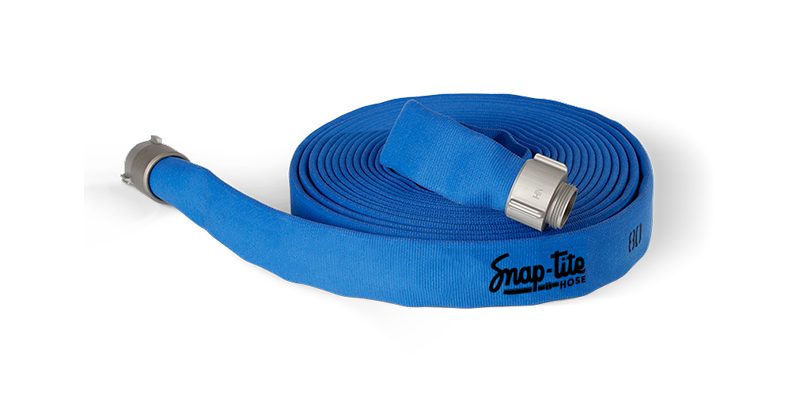

8D30x50B25N by Snap-Tite | 8D Series | Double Jacket Polyester Fire Hose Assembly with EPDM Liner | 3" Hose I.D. | 2-1/2" Male NH x 2-1/2" Female NH Couplings | 400 PSI | Blue Dura-Cote | 50ft Length

8D30x50B25N by Snap-Tite | 8D Series | Double Jacket Polyester Fire Hose Assembly with EPDM Liner | 3" Hose I.D. | 2-1/2" Male NH x 2-1/2" Female NH Couplings | 400 PSI | Blue Dura-Cote | 50ft Length

Sale price$540.97

Snap-Tite Hose
8D™ - POLYESTER DOUBLE JACKETED ATTACK HOSE

This hose may take 1-2 weeks to ship.

Package Quantity: 50 FT

Buy More, Save More!
Quantity Price Each
5–14 $508.51
15–29 $459.82
30+ $405.73
Discounts applied in cart/checkout.

Product Data:

Series:
  • 8D Series
Color(s):
  • Blue
Internal Diameter:
  • 3in
Model: 8D™
Basic Construction: Polyester outer/inner jacket, EPDM rubber liner
Application: Attack
Colors: Yellow, Red, Blue, Orange, Green, White (uncoated)
Temperature Range: -40° F - 150° F
Specifications: 1 year warranty.
"1-3/4" and 2-1/2 are ULC Certified.
Potable water approved: No.
Quality Management System Certification: ISO 9001:2015 Registration # IT-81045
Description:
Snap-tite's 8D™ is a premium quality, industrial grade, double jacketed hose with a lightweight EPDM (Ethylene Propylene Diene Monomer) rubber liner and a maximum operating pressure of 400 psi (2758 kPa). The outside jacket utilizes a tight weave that is less likely to "catch" while dragging through the work site and helps to reduce kinking at low pressures, keeping the flow constant. The EPDM liner is inert to most chemicals, is inherently ozone resistant, and won't degrade or crack. 8D™ also has a wide temperature range; capable of being used both at a mine in Alaska or a construction site in Arizona.
Features:
  • Double jacketed EPDM rubber lined hose made from 100% high tensile strength polyester yarn.
  • Optional Dura-Cote™ treatment greatly increases abrasion, heat, flame and petrochemical resistance while virtually eliminating water pick-up. When treated, 8D™ is protected from mildew and no drying is required.
  • Hose remains flexible to temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation, and most chemicals or petroleum products.
  • Excellent for tough applications such as construction sites, mines and industrial firefighting.
  • Available with aluminum or brass couplings.
  • Made in USA to ISO-9001:2015 certified quality assurance system.
Yellow
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1-1/2" 8D15x25Y15N 8D15x50Y15N 8D15x100Y15N Standard 400 psi 800 psi 1200 psi 0.32 55,000+
8D15x25Y15NBR 8D15x50Y15NBR 8D15x100Y15NBR Brass Rocker Lugs
2-1/2" 8D25x25Y25N 8D25x50Y25N 8D25x100Y25N Standard 400 psi 800 psi 1200 psi 0.56 55,000+
8D25x25Y25NBR 8D25x50Y25NBR 8D25x100Y25NBR Brass Rocker Lugs
3" 8D30x25Y25N 8D30x50Y25N 8D30x100Y25N Standard 400 psi 800 psi 1200 psi 0.66 55,000+
Red
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1-1/2" 8D15x25R15N 8D15x50R15N 8D15x100R15N Standard 400 psi 800 psi 1200 psi 0.32 55,000+
8D15x25R15NBR 8D15x50R15NBR 8D15x100R15NBR Brass Rocker Lugs
2-1/2" 8D25x25R25N 8D25x50R25N 8D25x100R25N Standard 400 psi 800 psi 1200 psi 0.56 55,000+
8D25x25R25NBR 8D25x50R25NBR 8D25x100R25NBR Brass Rocker Lugs
3" 8D30x25R25N 8D30x50R25N 8D30x100R25N Standard 400 psi 800 psi 1200 psi 0.66 55,000+
Blue
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1-1/2" 8D15x25B15N 8D15x50B15N 8D15x100B15N Standard 400 psi 800 psi 1200 psi 0.32 55,000+
8D15x25B15NBR 8D15x50B15NBR 8D15x100B15NBR Brass Rocker Lugs
2-1/2" 8D25x25B25N 8D25x50B25N 8D25x100B25N Standard 400 psi 800 psi 1200 psi 0.56 55,000+
8D25x25B25NBR 8D25x50B25NBR 8D25x100B25NBR Brass Rocker Lugs
3" 8D30x25B25N 8D30x50B25N 8D30x100B25N Standard 400 psi 800 psi 1200 psi 0.66 55,000+
Orange
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1-1/2" 8D15x25O15N 8D15x50O15N 8D15x100O15N Standard 400 psi 800 psi 1200 psi 0.32 55,000+
8D15x25O15NBR 8D15x50O15NBR 8D15x100O15NBR Brass Rocker Lugs
2-1/2" 8D25x25O25N 8D25x50O25N 8D25x100O25N Standard 400 psi 800 psi 1200 psi 0.56 55,000+
8D25x25O25NBR 8D25x50O25NBR 8D25x100O25NBR Brass Rocker Lugs
3" 8D30x25O25N 8D30x50O25N 8D30x100O25N Standard 400 psi 800 psi 1200 psi 0.66 55,000+
Green
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1-1/2" 8D15x25G15N 8D15x50G15N 8D15x100G15N Standard 400 psi 800 psi 1200 psi 0.32 55,000+
8D15x25G15NBR 8D15x50G15NBR 8D15x100G15NBR Brass Rocker Lugs
2-1/2" 8D25x25G25N 8D25x50G25N 8D25x100G25N Standard 400 psi 800 psi 1200 psi 0.56 55,000+
8D25x25G25NBR 8D25x50G25NBR 8D25x100G25NBR Brass Rocker Lugs
3" 8D30x25G25N 8D30x50G25N 8D30x100G25N Standard 400 psi 800 psi 1200 psi 0.66 55,000+
Uncoated White
Nominal
Size		 Part Number
25ft		 Part Number
50ft		 Part Number
100ft		 Coupling
Type		 Testing Pressures (PSI) Weight
(LBS/FT)		 Abrasion
Resistance
Working Proof Burst Uncoupled # of Taber Abrasion Cycles (H-22 wheel)
1-1/2" 8D15x25W15N 8D15x50W15N 8D15x100W15N Standard 400 psi 800 psi 1200 psi 0.32 55,000+
8D15x25W15NBR 8D15x50W15NBR 8D15x100W15NBR Brass Rocker Lugs
2-1/2" 8D25x25W25N 8D25x50W25N 8D25x100W25N Standard 400 psi 800 psi 1200 psi 0.56 55,000+
8D25x25W25NBR 8D25x50W25NBR 8D25x100W25NBR Brass Rocker Lugs
3" 8D30x25W25N 8D30x50W25N 8D30x100W25N Standard 400 psi 800 psi 1200 psi 0.66 55,000+
