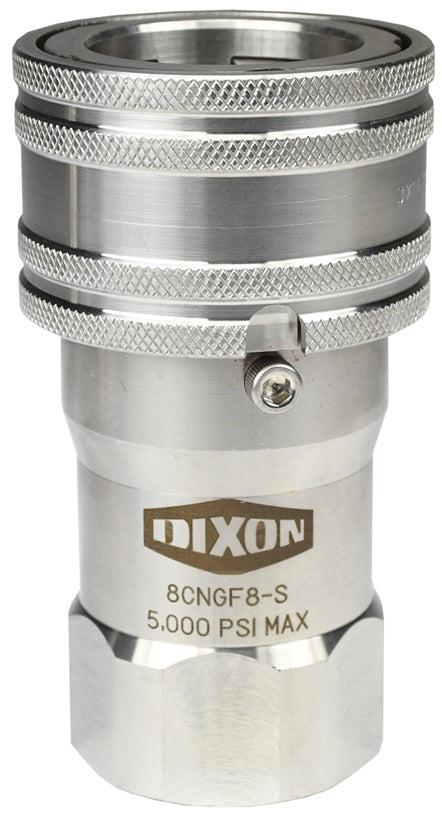

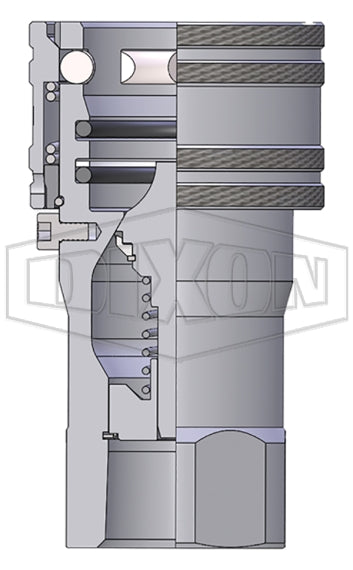

8CNGF8-S by Dixon Valve | Hydraulic Quick Disconnect Coupling | CNG-Series | 1" Female NPTF x 1" Body Size | ISO-B Compressed Natural Gas Socket | Nitrile Seal | 303 Stainless Steel
8CNGF8-S by Dixon Valve | Hydraulic Quick Disconnect Coupling | CNG-Series | 1" Female NPTF x 1" Body Size | ISO-B Compressed Natural Gas Socket | Nitrile Seal | 303 Stainless Steel

8CNGF8-S by Dixon Valve | Hydraulic Quick Disconnect Coupling | CNG-Series | 1" Female NPTF x 1" Body Size | ISO-B Compressed Natural Gas Socket | Nitrile Seal | 303 Stainless Steel

Sale price$367.30

Dixon Valve & Coupling
Hydraulic Coupling: CNG-Series ISO-B Compressed Natural Gas Coupler (Female Threads)

Used to facilitate the large volume transfer of high-pressure compressed natural gas (CNG) for applications such as virtual CNG pipelines, mining, oil exploration, well site development, and remote location natural gas delivery.
Buy More, Save More!
Quantity Price Each
5–14 $345.26
15–29 $312.21
30+ $275.48
Discounts applied in cart/checkout.

Product Data:

Series:
  • CNG Series
Shape:

Straight

Ends Configuration:
  • 1in Male ISO-B QD Interchange
  • 1in Female NPTF
Compatibility & Interchange:
  • Designed to ISO7241-B Series
  • Interchangeable with Oasis 300 Series
Specifications:
  • Improved body and valve design provides a 30% increased flow performance over standard ISO-B designs.
  • The latch mechanism provides brinelling resistance.
  • Locking sleeve design prevents accidental disconnection.
  • Captured valve O-ring for reliability in high-flow conditions.
  • Non-sparking material.
Construction:
  • Machined from 303 stainless steel bar stock.
  • Pressure Seal: FKM / Nitrile.
  • Nitrile seals are standard, providing a temperature range of -65°F to 180°F (-65°C to 82°C).
Features:
  • Optimized geometry to improve flow Elongated plug body length Captured valve O-ring.
Use:
  • Meets CNG service requirements.
Additional Information:
CNG-Series | ISO-B Compressed Natural Gas Coupler (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Working
Pressure		 Burst
Pressure		 Flow
8CNGF8-S Socket/Female 1" 1" - 11-1/2
Female NPTF		 303 Stainless 4.30"
(109.22mm)		 2.53"
(64.26mm)		 1-7/8" 5000 PSI
(345 bar)		 5000 PSI MAWP 18,500 PSI
(1,275 bar)		 74 GPM @
22 PSI
8CNGOM8-S Socket/Female 1" 1-5/16" - 12
Female ORB		 303 Stainless 4.49"
(119.4 mm)		 2.65"
(67.6 mm)		 - 5000 PSI
(345 bar)		 5000 PSI MAWP 18,500 PSI
(1,275 bar)		 74 GPM @
22 PSI
CNG-Series | ISO-B Compressed Natural Gas Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Working
Pressure		 Burst
Pressure		 Flow
CNG8F8-S Plug/Male 1" 1" - 11-1/2
Female NPTF 		303 Stainless 4.72"
(119.88mm)		 2.06"
(52.32mm)		 1-7/8" 5000 PSI
(345 bar)		 5000 PSI MAWP 18,500 PSI
(1,275 bar)		 74 GPM @
22 PSI
CNG-Series | ISO-B Compressed Natural Gas Plug (Male Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Operating
Pressure		 Working
Pressure		 Burst
Pressure		 Flow
CNG8OM8-S Plug/Male 1" 1-5/16" - 12
Male ORB		 303 Stainless 4.70"
(119.38mm)		 2.66"
(67.57mm)		 2-3/8" 5,000 PSI
(345 bar)		 5,000 PSI MAWP 18,500 PSI
(1,275 bar)		 74 GPM @
22 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
