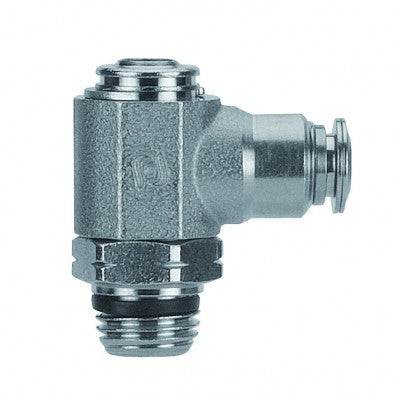

89973-53-02 by AIGNEP | Functional (Flow Controls) Series | Needle Valve Metal Release Collet | 5/32" Tube x 1/8" Swift-Fit Male | Screw Adjustment
89973-53-02 by AIGNEP | Functional (Flow Controls) Series | Needle Valve Metal Release Collet | 5/32" Tube x 1/8" Swift-Fit Male | Screw Adjustment

89973-53-02 by AIGNEP | Functional (Flow Controls) Series | Needle Valve Metal Release Collet | 5/32" Tube x 1/8" Swift-Fit Male | Screw Adjustment

Sale price$15.37
Buy More, Save More!
Quantity Price Each
10–39 $14.45
40–79 $13.06
80+ $11.53
Discounts applied in cart/checkout.

Product Data:

Series:
  • Functional (Flow Controls) Series
Shape:

90 Degree

Ends Configuration:
  • 5/32in Push-to-Connect
  • 1/8in Male Swift-Fit

Inch Tube Needle Valve

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A B (IN) B L1 L2 CH Code
89973-53-02 5/32" 1/8" 0.217" 5.5 mm 21 mm 30.5 mm 14 mm B

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
