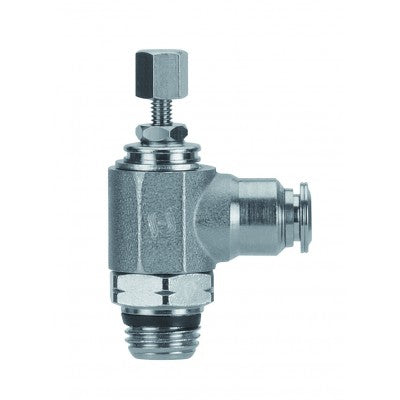

89958-02-32 by AIGNEP | Functional (Flow Controls) Series | Flow Control Metal Release Collet | 1/8" Tube x 10-32 UNF Male | Flow Out Knob Adjustment
89958-02-32 by AIGNEP | Functional (Flow Controls) Series | Flow Control Metal Release Collet | 1/8" Tube x 10-32 UNF Male | Flow Out Knob Adjustment

89958-02-32 by AIGNEP | Functional (Flow Controls) Series | Flow Control Metal Release Collet | 1/8" Tube x 10-32 UNF Male | Flow Out Knob Adjustment

Sale price$18.99
Buy More, Save More!
Quantity Price Each
10–39 $17.85
40–79 $16.14
80+ $14.24
Discounts applied in cart/checkout.

Product Data:

Series:
  • Functional (Flow Controls) Series
Shape:

90 Degree

Ends Configuration:
  • 1/8in Push-to-Connect
  • 10-32 Male UNF

Inch Tube Flow Control (OUT)

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel-plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A B (IN) B L1 L2 Min L2 Max CH Code
89958-02-32 1/8" 10-32 0.157" 4 mm 19 mm 33 mm 37.5 mm 8 mm C

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
