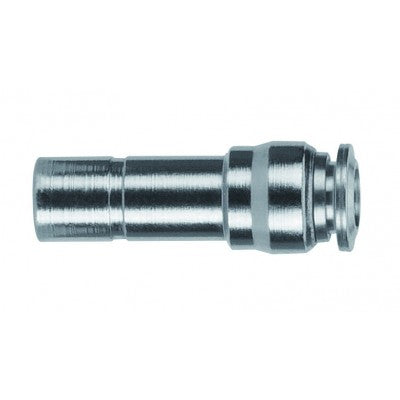

89700-08-04 by AIGNEP | 89 Series | Reducer | 1/2" Male Stud Metal Release Collet x 1/4" Tube | Pack of 10
89700-08-04 by AIGNEP | 89 Series | Reducer | 1/2" Male Stud Metal Release Collet x 1/4" Tube | Pack of 10

89700-08-04 by AIGNEP | 89 Series | Reducer | 1/2" Male Stud Metal Release Collet x 1/4" Tube | Pack of 10

Sale price$38.55

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $36.24
40–79 $32.77
80+ $28.91
Discounts applied in cart/checkout.

Product Data:

Series:
  • 89 Series
Shape:

Straight

Ends Configuration:
  • 1/2in Tube Stub
  • 1/4in Push-to-Connect

Tube Reducer Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

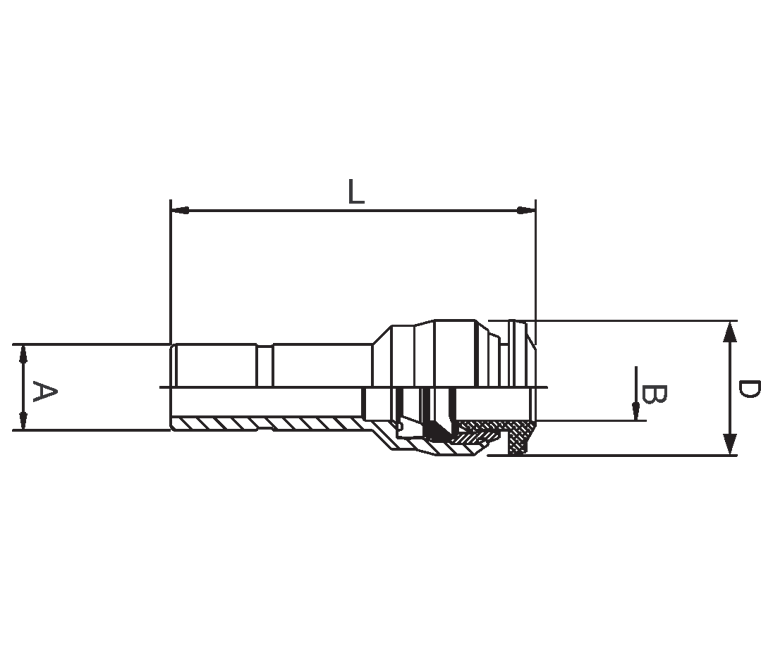

Product Number A B (IN) L D
89700-04-02 1/4" 1/8" 30 mm 10 mm
89700-04-53 1/4" 5/32" 30 mm 10 mm
89700-06-04 3/8" 1/4" 35.5 mm 12.5 mm
89700-06-05 3/8" 5/16" 35.5 mm 14 mm
89700-08-04 1/2" 1/4" 43 mm 12.5 mm
89700-08-06 1/2" 3/8" 43 mm 17.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
