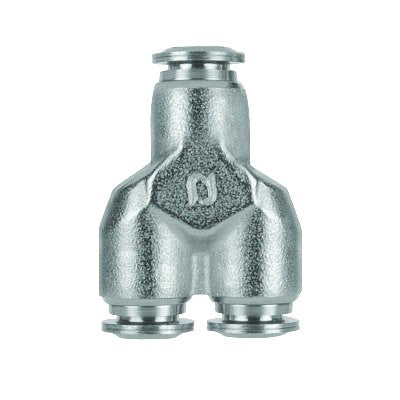

89310-53 by AIGNEP | 89 Series | Union | 5/32" Tube | Y | Pack of 10
89310-53 by AIGNEP | 89 Series | Union | 5/32" Tube | Y | Pack of 10

89310-53 by AIGNEP | 89 Series | Union | 5/32" Tube | Y | Pack of 10

Sale price$67.43

Package Quantity: 10 ea

Buy more, save moreDiscounts applied in cart/checkout.

Union Y Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

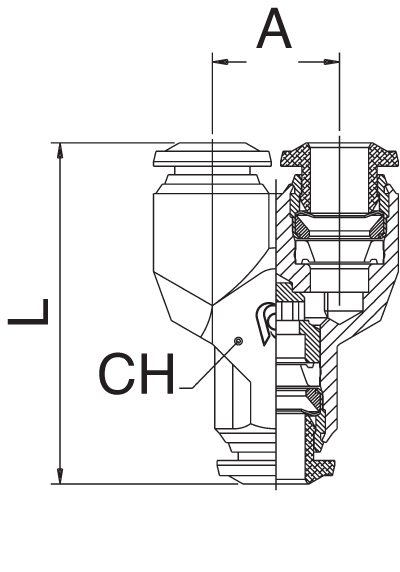

Product Number Tube A L CH D
89310-02 1/8" 10 mm 29 mm 11 mm 10 mm
89310-53 5/32" 11 mm 32 mm 11 mm 10 mm
89310-04 1/4" 13.5 mm 36.5 mm 13 mm 12.5 mm
89310-06 3/8" 18.5 mm 48 mm 18 mm 17.5 mm

Additional Product Data:

Series:
  • 89 Series
Shape:

Y

Ends Configuration:
  • 5/32in Push-to-Connect
  • 5/32in Push-to-Connect
  • 5/32in Push-to-Connect
  • Some Ends Match

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
