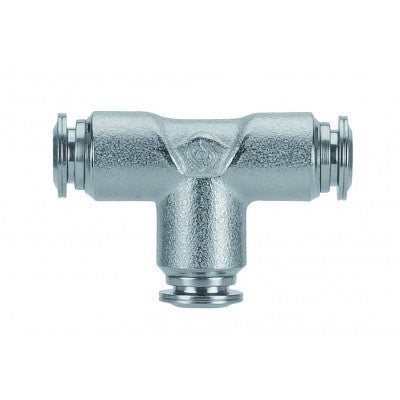

89230-06 by AIGNEP | 89 Series | Union Metal Release Collet | 3/8" Tube | Tee | Pack of 10
89230-06 by AIGNEP | 89 Series | Union Metal Release Collet | 3/8" Tube | Tee | Pack of 10

89230-06 by AIGNEP | 89 Series | Union Metal Release Collet | 3/8" Tube | Tee | Pack of 10

Sale price$82.71

Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
5–19 $77.75
20–59 $70.30
60+ $62.03
Discounts applied in cart/checkout.

Product Data:

Series:
  • 89 Series
Shape:

Tee

Ends Configuration:
  • 3/8in Push-to-Connect
  • 3/8in Push-to-Connect
  • Some Ends Match

Union Tee Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

Product Number Tube L1 L2 CH D
89230-02 1/8" 33 mm 17 mm 9 mm 10 mm
89230-04 1/4" 42 mm 21 mm 11 mm 12.5 mm
89230-05 5/16" 45 mm 22.5 mm 13 mm 14 mm
89230-06 3/8" 53 mm 26.5 mm 16 mm 17.5 mm
89230-08 1/2" 61 mm 30.5 mm 19 mm 21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
