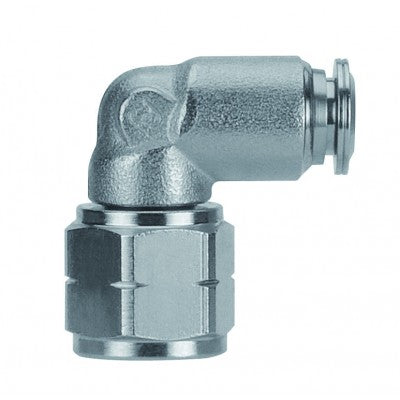

89105-53-02 by AIGNEP | 89 Series | Swivel Female Metal Release Collet | 5/32" Tube x 1/8" Female NPTF | 90° Elbow | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $45.36 |
| 40–79 | $41.02 |
| 80+ | $36.20 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Seal Material(s):
Female Swivel Elbow Metallic
Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: NPTF
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: NPTF
| Product Number | Tube | A NPTF | B (IN) | B | L1 | L2 | CH1 | CH2 |
|---|---|---|---|---|---|---|---|---|
| 89105-53-02 | 5/32" | 1/8" | 0.374" | 9.5 mm | 17.5 mm | 17.5 mm | 9 mm | 13 mm |
| 89105-53-04 | 5/32" | 1/4" | 0.531" | 13.5 mm | 17.5 mm | 20 mm | 9 mm | 16 mm |
| 89105-04-02 | 1/4" | 1/8" | 0.374" | 9.5 mm | 21.5 mm | 19 mm | 11 mm | 13 mm |
| 89105-04-04 | 1/4" | 1/4" | 0.531" | 13.5 mm | 21.5 mm | 21.5 mm | 11 mm | 16 mm |
| 89105-06-02 | 3/8" | 1/8" | 0.374" | 9.5 mm | 27 mm | 23 mm | 13 mm | 13 mm |
| 89105-06-04 | 3/8" | 1/4" | 0.531" | 13.5 mm | 27 mm | 24 mm | 16 mm | 16 mm |
