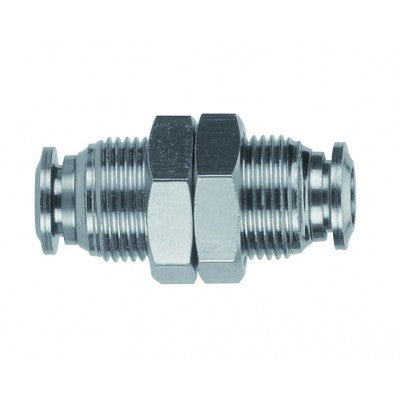

89050-04 by AIGNEP | 89 Series | Bulkhead Union Metal Release Collet | 1/4" Tube | Pack of 10
89050-04 by AIGNEP | 89 Series | Bulkhead Union Metal Release Collet | 1/4" Tube | Pack of 10

89050-04 by AIGNEP | 89 Series | Bulkhead Union Metal Release Collet | 1/4" Tube | Pack of 10

Sale price$66.78

Package Quantity: 10 ea

Buy more, save moreDiscounts applied in cart/checkout.

Bulkhead Union Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

Product Number Tube M CH L A Max.
89050-02 1/8" M10 x 1 14 mm 26 mm 5 mm
89050-04 1/4" M14 x 1 17 mm 35 mm 9.5 mm
89050-06 3/8" M20 x 1 24 mm 42 mm 12.5 mm
89050-08 1/2" M22 x 1 26 mm 48 mm 16.5 mm

Additional Product Data:

Series:
  • 89 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • Some Ends Match

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
