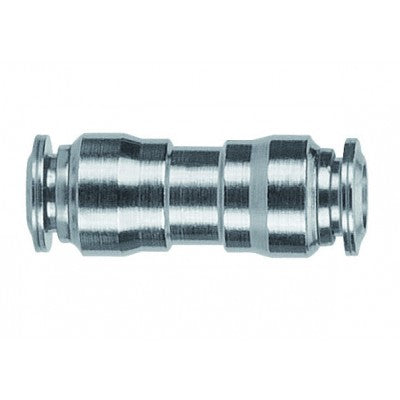

89040-05 by AIGNEP | 89 Series | Union Metal Release Collet | 5/16" Tube | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $31.25 |
| 40–79 | $28.25 |
| 80+ | $24.93 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Union Metallic
Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
| Product Number | Tube | B (IN) | B | L |
|---|---|---|---|---|
| 89040-02 | 1/8" | 0.334" | 8.5 mm | 26 mm |
| 89040-04-53 | 1/4" x 5/32" | 0.492" | 12.5 mm | 33 mm |
| 89040-04 | 1/4" | 0.492" | 12.5 mm | 33 mm |
| 89040-05 | 5/16" | 0.570" | 14.5 mm | 36 mm |
| 89040-06 | 3/8" | 0.688" | 17.5 mm | 41 mm |
| 89040-06-08 | 3/8" x 1/2" | 0.807" | 20.5 mm | 47 mm |
| 89040-08 | 1/2" | 0.807" | 20.5 mm | 47 mm |
