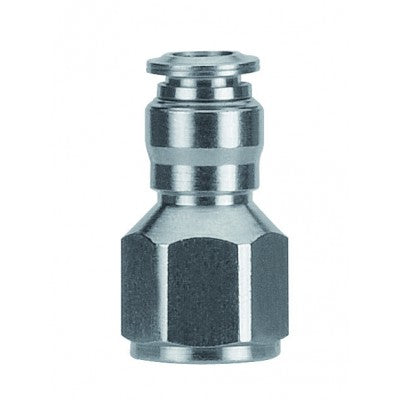

89030-06-04 by AIGNEP | 89 Series | Female Metal Release Collet | 3/8" Tube x 1/4" Female NPTF | Straight | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $44.50 |
| 40–79 | $40.24 |
| 80+ | $35.51 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Straight Female Metallic
Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT
| Product Number | Tube | A NPTF | B (IN) | B | L | CH |
|---|---|---|---|---|---|---|
| 89030-02-02 | 1/8" | 1/8" | 0.374" | 9.5 mm | 24 mm | 13 mm |
| 89030-02-04 | 1/8" | 1/4" | 0.531" | 13.5 mm | 29 mm | 16 mm |
| 89030-53-02 | 5/32" | 1/8" | 0.374" | 9.5 mm | 24.5 mm | 13 mm |
| 89030-53-04 | 5/32" | 1/4" | 0.531" | 13.5 mm | 29.5 mm | 16 mm |
| 89030-04-02 | 1/4" | 1/8" | 0.374" | 9.5 mm | 26 mm | 13 mm |
| 89030-04-04 | 1/4" | 1/4" | 0.531" | 13.5 mm | 31 mm | 16 mm |
| 89030-06-04 | 3/8" | 1/4" | 0.531" | 13.5 mm | 34.5 mm | 18 mm |
| 89030-06-06 | 3/8" | 3/8" | 0.531" | 13.5 mm | 34.5 mm | 20 mm |
