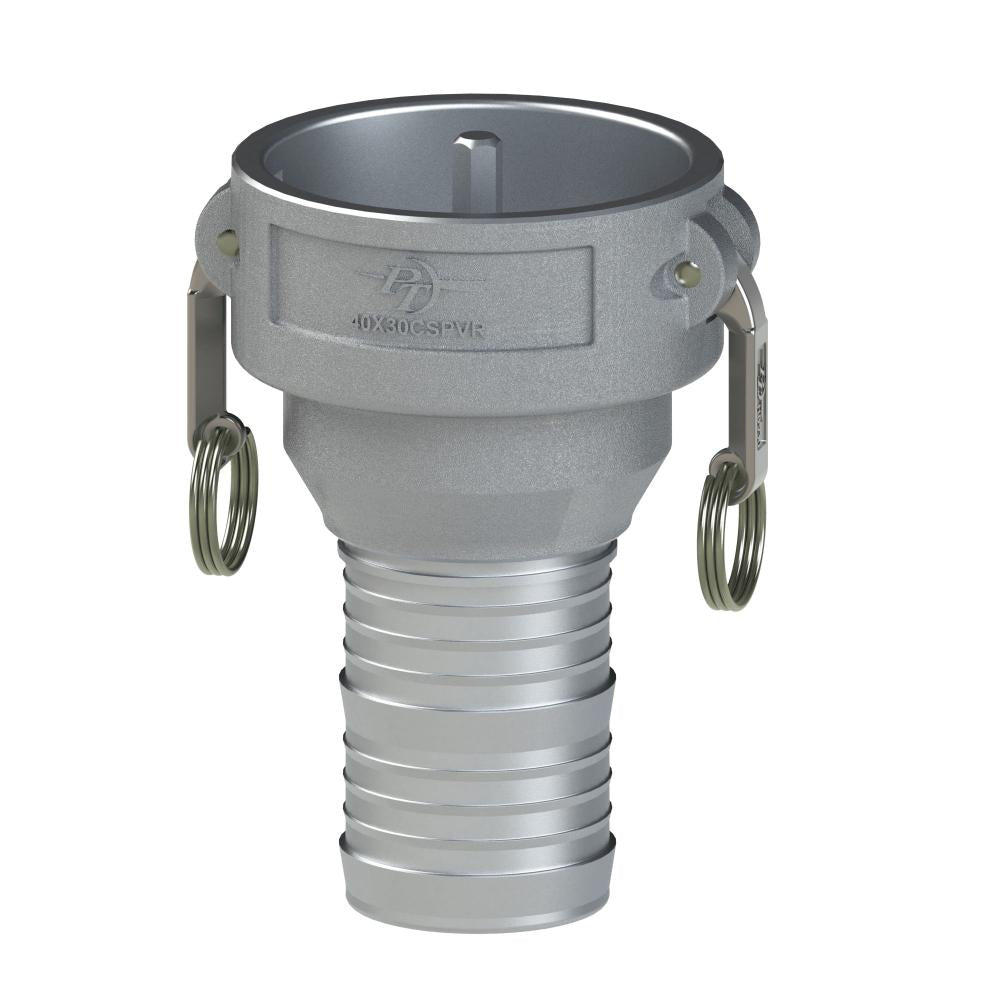

89010404A (40X30CSPVR) by PT-Coupling | Petroleum Handling Vapor Recovery Breakaway Reducing Coupler | 4" Coupler x 3" Hose Shank | Aluminum

89010404A (40X30CSPVR) by PT-Coupling | Petroleum Handling Vapor Recovery Breakaway Reducing Coupler | 4" Coupler x 3" Hose Shank | Aluminum

Sale price$277.11
Buy more, save moreDiscounts applied in cart/checkout.
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Standard hose shank design allows hose attachment via PUNCH-LOK® center punch clamps or by interlocked PROGRIP™ C-50 ferrule or sleeve.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Description Coupler
Size		 Hose Shank
Size		 Inside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Engagement
Length
40X30CSPVR 89010404A Assembly 4" 3" 2.62" 8.61" 4.25" 1.87"

Additional Product Data:

Series:
  • Petroleum Handling
Shape:

Straight

Material(s):
  • Aluminum

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
