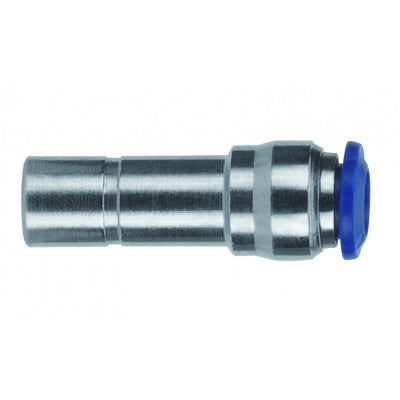

88700-06-04 by AIGNEP | 87 / 88 Series | Tube Reducer | 3/8" Male Stud x 1/4" Tube | Pack of 10
Package Quantity: 10 ea
Product Data:
Series:
Shape:
["Straight"]
Ends Configuration:
Material(s):
Seal Material(s):
Tube Reducer
Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

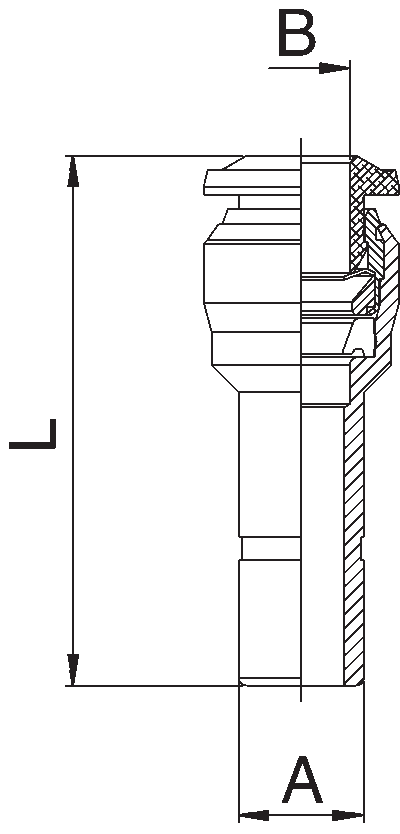

| Product Number | A | B (IN) | L | |
|---|---|---|---|---|
| 88700-04-02 | 1/4" | 1/8" | 30 mm | |
| 88700-04-53 | 1/4" | 5/32" | 30 mm | |
| 88700-06-04 | 3/8" | 1/4" | 35 mm | |
| 88700-08-04 | 1/2" | 1/4" | 43 mm | |
| 88700-08-06 | 1/2" | 3/8" | 43 mm |
