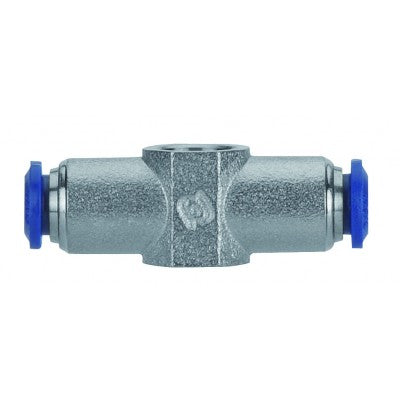

88510-53-32 by AIGNEP | 87 / 88 Series | Double Banjo Body | 5/32" Tube x 10/32 | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $48.47 |
| 40–79 | $43.83 |
| 80+ | $38.67 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Material(s):
Double Banjo Body
Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
| Product Number | Tube | A | B (IN) | B | L | CH | |
|---|---|---|---|---|---|---|---|
| 88510-53-32 | 5/32" | 10-32 | 0.492" | 12.5 mm | 38 mm | - | |
| 88510-04-02 | 1/4" | 1/8" | 0.591" | 15 mm | 44 mm | 14 mm | |
| 88510-04-04 | 1/4" | 1/4" | 0.669" | 17 mm | 50 mm | 18 mm |
