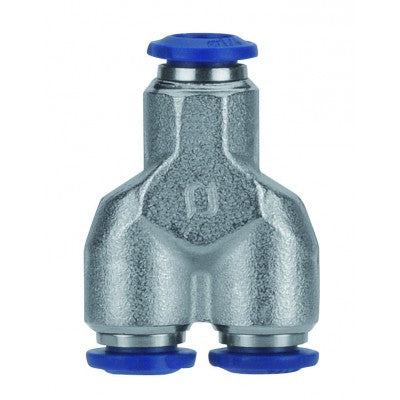

88310-05 by AIGNEP | 87 / 88 Series | Union | 5/16" Tube | Y | Pack of 10
88310-05 by AIGNEP | 87 / 88 Series | Union | 5/16" Tube | Y | Pack of 10

88310-05 by AIGNEP | 87 / 88 Series | Union | 5/16" Tube | Y | Pack of 10

Sale price$77.22

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
5–19 $72.59
20–59 $65.64
60+ $57.92
Discounts applied in cart/checkout.

Product Data:

Series:
  • 87/88 Series
Shape:

Y

Ends Configuration:
  • 5/16in Push-to-Connect
  • 5/16in Push-to-Connect
  • 5/16in Push-to-Connect
  • Some Ends Match

Union Y

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

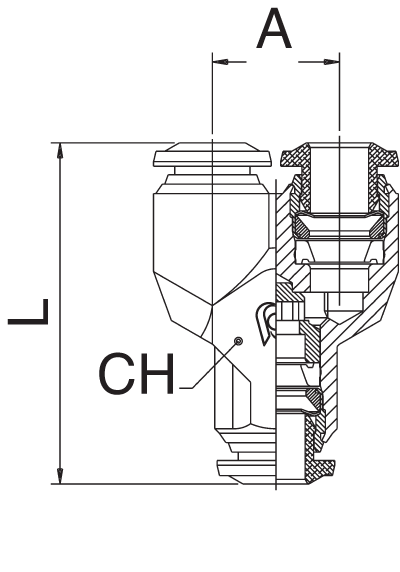

Product Number Tube A L CH
88310-02 1/8" 10 mm 29 mm 11 mm
88310-53 5/32" 11 mm 32 mm 11 mm
88310-04 1/4" 13.5 mm 36.5 mm 13 mm
88310-05 5/16" 15.5 mm 41 mm 13 mm
88310-06 3/8" 18.5 mm 48 mm 18 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
