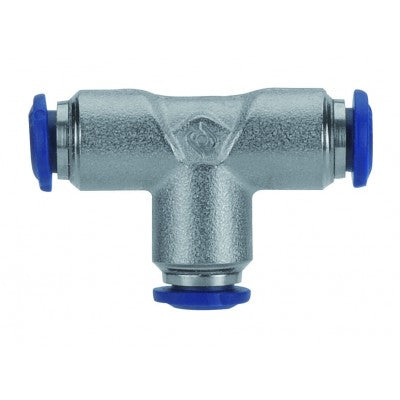

88230-04 by AIGNEP | 87 / 88 Series | Union | 1/4" Tube | Tee | Pack of 10
88230-04 by AIGNEP | 87 / 88 Series | Union | 1/4" Tube | Tee | Pack of 10

88230-04 by AIGNEP | 87 / 88 Series | Union | 1/4" Tube | Tee | Pack of 10

Sale price$53.30

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $50.10
40–79 $45.31
80+ $39.98
Discounts applied in cart/checkout.

Product Data:

Series:
  • 87/88 Series
Shape:

Tee

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • Some Ends Match

Union Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

Product Number Tube L1 L2 CH
88230-02 1/8" 33 mm 17 mm 9 mm
88230-53 5/32" 34 mm 17 mm 9 mm
88230-04 1/4" 42 mm 21 mm 11 mm
88230-05 5/16" 45 mm 22.5 mm 13 mm
88230-06 3/8" 53 mm 26.5 mm 16 mm
88230-08 1/2" 61 mm 30.5 mm 19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
