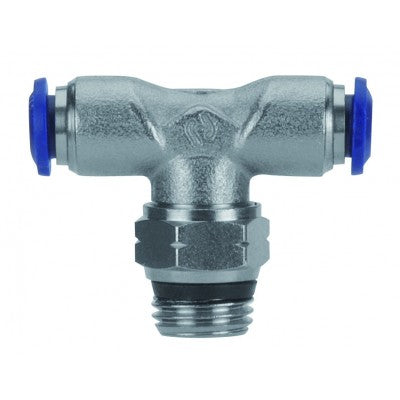

88215-04-32 by AIGNEP | 87 / 88 Series | Swivel Male Branch | 1/4" Tube x 10/32 UNF Male | Tee | Pack of 10
88215-04-32 by AIGNEP | 87 / 88 Series | Swivel Male Branch | 1/4" Tube x 10/32 UNF Male | Tee | Pack of 10

88215-04-32 by AIGNEP | 87 / 88 Series | Swivel Male Branch | 1/4" Tube x 10/32 UNF Male | Tee | Pack of 10

Sale price$49.54

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $46.57
40–79 $42.11
80+ $37.16
Discounts applied in cart/checkout.

Product Data:

Series:
  • 87/88 Series
Shape:

Tee

Ends Configuration:
  • 1/4in Push-to-Connect
  • 10-32 Male UNF
  • 1/4in Push-to-Connect
  • Some Ends Match

Swivel Branch Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A B (IN) B L1 L2
88215-02-32 1/8" 10-32 0.197" 5 mm 33 mm 20 mm
88215-53-32 5/32" 10-32 0.197" 5 mm 33 mm 20 mm
88215-04-32 1/4" 10-32 0.197" 5 mm 33 mm 22 mm
m

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
