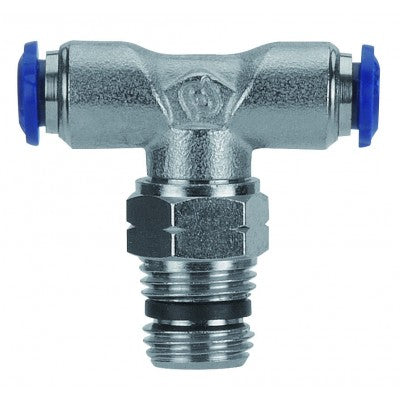

88210-06-08 by AIGNEP | 87 / 88 Series | Swivel Male Branch | 3/8" Tube x 1/2" Male NPTF | Tee | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $77.80 |
| 20–59 | $70.35 |
| 60+ | $62.08 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Swivel Branch Tee
Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: NPTF
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: NPTF
| Product Number | Tube | A NPTF | Thread Type | B (IN) | B | L1 | L2 | |
|---|---|---|---|---|---|---|---|---|
| 88210-02-02 | 1/8" | 1/8" | NPTF | 0.295" | 7.5 mm | 33 mm | 23 mm | |
| 88210-02-04 | 1/8" | 1/4" | NPTF | 0.512" | 13 mm | 33 mm | 28.5 mm | |
| 88210-53-02 | 5/32" | 1/8" | NPTF | 0.295" | 7.5 mm | 33 mm | 23 mm | |
| 88210-53-04 | 5/32" | 1/4" | NPTF | 0.512" | 13 mm | 33 mm | 30 mm | |
| 88210-04-02 | 1/4" | 1/8" | NPTF | 0.295" | 7.5 mm | 42 mm | 26 mm | |
| 88210-04-04 | 1/4" | 1/4" | NPTF | 0.512" | 13 mm | 42 mm | 31 mm | |
| 88210-06-04 | 3/8" | 1/4" | NPTF | 0.512" | 13 mm | 53 mm | 35 mm | |
| 88210-06-06 | 3/8" | 3/8" | NPTF | 0.512" | 13 mm | 53 mm | 34.5 mm | |
| 88210-06-08 | 3/8" | 1/2" | NPTF | 0.669" | 17 mm | 53 mm | 41 mm | |
| 88210-08-04 | 1/2" | 1/4" | NPTF | 0.512" | 13 mm | 61 mm | 39.5 mm | |
| 88210-08-06 | 1/2" | 3/8" | NPTF | 0.512" | 13 mm | 61 mm | 37.5 mm | |
| 88210-08-08 | 1/2" | 1/2" | NPTF | 0.669" | 17 mm | 61 mm | 44 mm |
