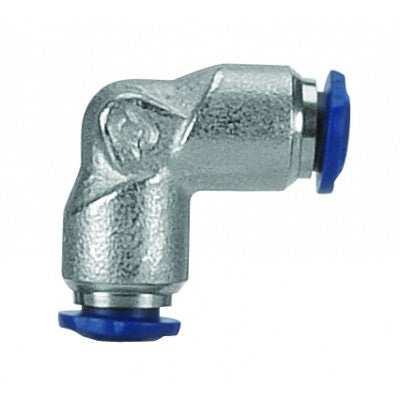

88130-53 by AIGNEP | 87 / 88 Series | Union | 5/32" Tube | 90° Elbow | Pack of 10
88130-53 by AIGNEP | 87 / 88 Series | Union | 5/32" Tube | 90° Elbow | Pack of 10

88130-53 by AIGNEP | 87 / 88 Series | Union | 5/32" Tube | 90° Elbow | Pack of 10

Sale price$37.50

Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
10–39 $35.25
40–79 $31.88
80+ $28.13
Discounts applied in cart/checkout.

Product Data:

Series:
  • 87/88 Series
Shape:

90 Degree

Ends Configuration:
  • 5/32in Push-to-Connect
  • 5/32in Push-to-Connect
  • Some Ends Match

Union 90° Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

Product Number Tube L CH
88130-02 1/8" 17 mm 9 mm
88130-53 5/32" 17 mm 9 mm
88130-04 1/4" 21 mm 11 mm
88130-05 5/16" 23 mm 13 mm
88130-06 3/8" 26.5 mm 16 mm
88130-08 1/2" 30.5 mm 19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
