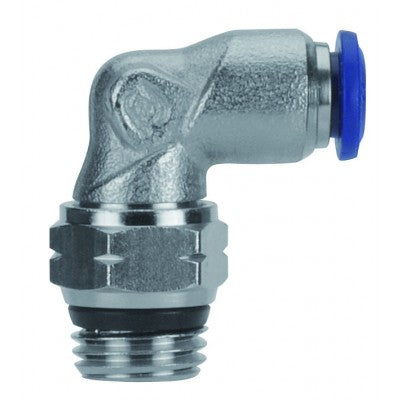

88115-02-32 by AIGNEP | 87 / 88 Series | Swivel | 1/8" Tube x 10/32 UNF Male | 90° Elbow | Pack of 10
88115-02-32 by AIGNEP | 87 / 88 Series | Swivel | 1/8" Tube x 10/32 UNF Male | 90° Elbow | Pack of 10

88115-02-32 by AIGNEP | 87 / 88 Series | Swivel | 1/8" Tube x 10/32 UNF Male | 90° Elbow | Pack of 10

Sale price$40.71

Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
10–39 $38.27
40–79 $34.60
80+ $30.53
Discounts applied in cart/checkout.

Product Data:

Series:
  • 87/88 Series
Shape:

90 Degree

Ends Configuration:
  • 1/8in Push-to-Connect
  • 10-32 Male UNF

Swivel Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A B (IN) B L1 L2 CH1 CH2
88115-02-32 1/8" 10-32 0.157" 4 mm 16.5 mm 19.5 mm 9 mm 8 mm
88115-53-32 5/32" 10-32 0.157" 4 mm 17 mm 19.5 mm 9 mm 8 mm
88115-04-32 1/4" 10-32 0.157" 4 mm 21 mm 22 mm 11 mm 8 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
