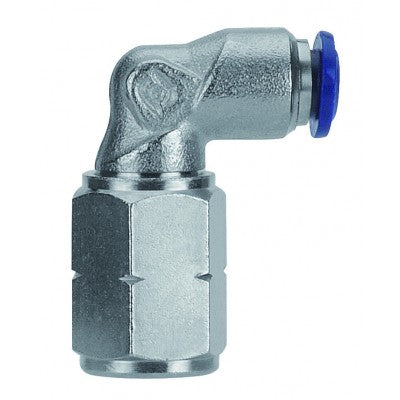

88105-06-02 by AIGNEP | 87 / 88 Series | Swivel | 3/8" Tube x 1/8" Female NPTF | 90° Elbow | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $57.08 |
| 40–79 | $51.61 |
| 80+ | $45.54 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Seal Material(s):
Female Swivel Elbow
Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: NPTF
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: NPTF
| Product Number | Tube | A NPTF | Thread Type | B (IN) | B | L1 | L2 | CH1 | CH2 | |
|---|---|---|---|---|---|---|---|---|---|---|
| 88105-53-02 | 5/32" | 1/8" | NPTF | 0.374" | 9.5 mm | 17 mm | 25 mm | 9 mm | 13 mm | |
| 88105-53-04 | 5/32" | 1/4" | NPTF | 0.531" | 13.5 mm | 17 mm | 31.5 mm | 9 mm | 16 mm | |
| 88105-04-02 | 1/4" | 1/8" | NPTF | 0.374" | 9.5 mm | 21.5 mm | 27 mm | 11 mm | 13 mm | |
| 88105-04-04 | 1/4" | 1/4" | NPTF | 0.531" | 13.5 mm | 21 mm | 32.5 mm | 11 mm | 16 mm | |
| 88105-06-02 | 3/8" | 1/8" | NPTF | 0.374" | 9.5 mm | 27 mm | 31 mm | 13 mm | 13 mm | |
| 88105-06-04 | 3/8" | 1/4" | NPTF | 0.531" | 13.5 mm | 27 mm | 35.5 mm | 16 mm | 16 mm |
