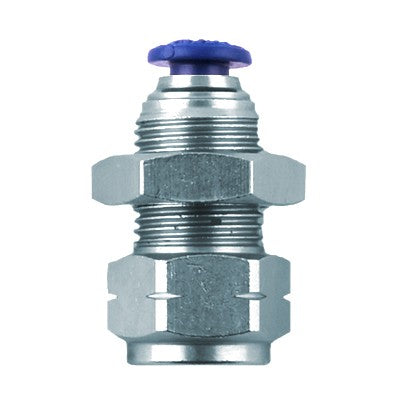

88055-05-04 by AIGNEP | 88 Series | Female Bulkhead | 5/16" Tube x 1/4" NPTF | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $56.85 |
| 40–79 | $51.41 |
| 80+ | $45.36 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Female Bulkhead
Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

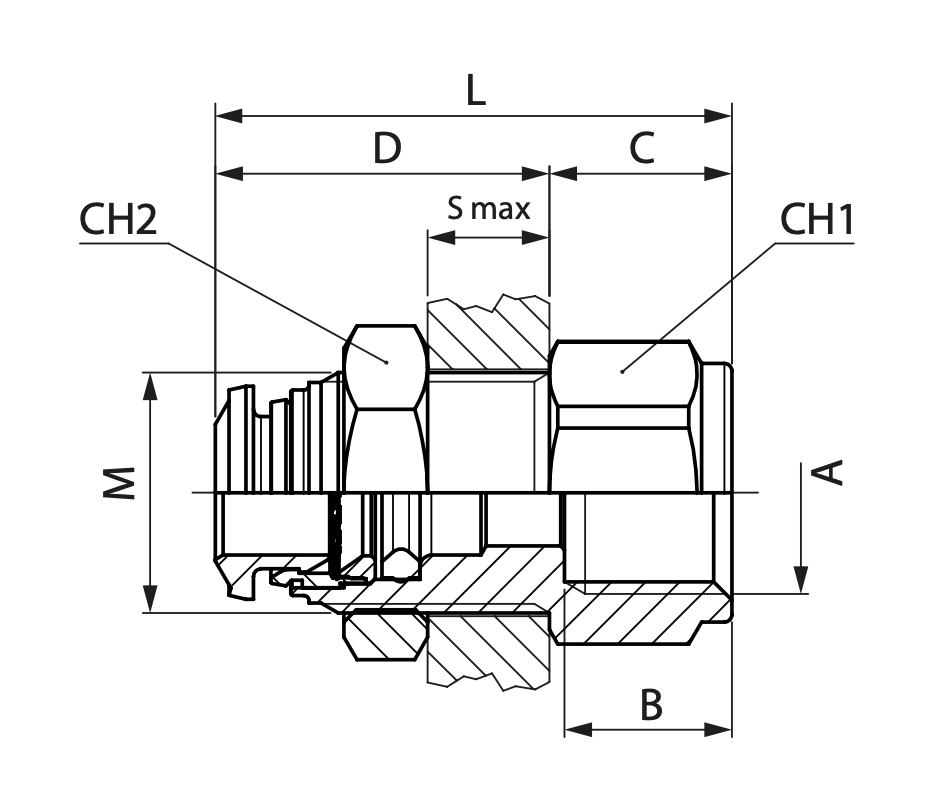

| Product Number | Tube | M | A | B | C | CH1 | CH2 | D | L | S Max |
|---|---|---|---|---|---|---|---|---|---|---|
| 88055-53-02 | 5/32" | M12 x 1 | 1/8" | 9.5 mm | 10 mm | 15 mm | 17 mm | 19 mm | 29 mm | 7 mm |
| 88055-04-02 | 1/4" | M14 x 1 | 1/8" | 9.5 mm | 10 mm | 16 mm | 17 mm | 21 mm | 31 mm | 8 mm |
| 88055-04-04 | 1/4" | M14 x 1 | 1/4" | 13.5 mm | 15 mm | 16 mm | 17 mm | 21 mm | 36 mm | 8 mm |
| 88055-05-02 | 5/16" | M16 x 1 | 1/8" | 9.5 mm | 10 mm | 18 mm | 19 mm | 22 mm | 32 mm | 8 mm |
| 88055-05-04 | 5/16" | M16 x 1 | 1/4" | 13.5 mm | 12 mm | 18 mm | 19 mm | 22 mm | 34 mm | 8 mm |
| 88055-06-06 | 3/8" | M20 x 1 | 3/8" | 13.5 mm | 14 mm | 24 mm | 24 mm | 25.5 mm | 39.5 mm | 9.5 mm |
| 88055-08-06 | 1/2" | M22 x 1 | 3/8" | 13.5 mm | 15 mm | 24 mm | 26 mm | 27.5 mm | 42.5 mm | 10.5 mm |
| 88055-08-08 | 1/2" | M22 x 1 | 1/2" | 17.5 mm | 20 mm | 24 mm | 26 mm | 27.5 mm | 47.5 mm | 10.5 mm |
