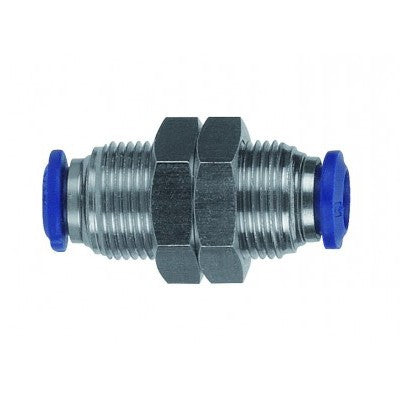

88050-04 by AIGNEP | 87 / 88 Series | Bulkhead Union | 1/4" Tube | Pack of 10
88050-04 by AIGNEP | 87 / 88 Series | Bulkhead Union | 1/4" Tube | Pack of 10

88050-04 by AIGNEP | 87 / 88 Series | Bulkhead Union | 1/4" Tube | Pack of 10

Sale price$58.09

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $54.60
40–79 $49.38
80+ $43.57
Discounts applied in cart/checkout.

Product Data:

Series:
  • 87/88 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • Some Ends Match

Bulkhead Union

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

Product Number Tube M CH L A Max
88050-02 1/8" M10 x 1 14 mm 26 mm 5 mm
88050-53 5/32" M12 x 1 17 mm 32 mm 7 mm
88050-04 1/4" M14 x 1 17 mm 36 mm 9.5 mm
88050-05 5/16" M16 x 1 19 mm 37.5 mm 10.5 mm
88050-06 3/8" M20 x 1 24 mm 44 mm 12.5 mm
88050-08 1/2" M22 x 1 26 mm 49 mm 16.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
