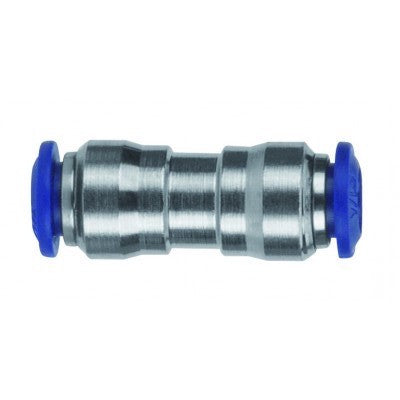

88040-06-08 by AIGNEP | 87 / 88 Series | Union Reducer | 3/8" Tube x 1/2" Tube | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $57.59 |
| 40–79 | $52.08 |
| 80+ | $45.95 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Union
Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
| Product Number | Tube | B (IN) | B | L | |
|---|---|---|---|---|---|
| 88040-02 | 1/8" | 0.335" | 8.5 mm | 26 mm | |
| 88040-04 | 1/4" | 0.492" | 12.5 mm | 35 mm | |
| 88040-53 | 5/32" | 0.413" | 10.5 mm | 30 mm | |
| 88040-05 | 5/16" | 0.571" | 14.5 mm | 37 mm | |
| 88040-08 | 1/2" | 0.807" | 20.5 mm | 48.5 mm | |
| 88040-06 | 3/8" | 0.689" | 17.5 mm | 43 mm | |
| 88040-04-53 | 1/4" x 5/32" | 0.492" | 12.5 mm | 32.5 mm | |
| 88040-06-04 | 3/8" x 1/4" | 0.688" | 17.5 mm | 39.5 mm | |
| 88040-06-08 | 3/8" x 1/2" | 0.807" | 20.5 mm | 47 mm |
