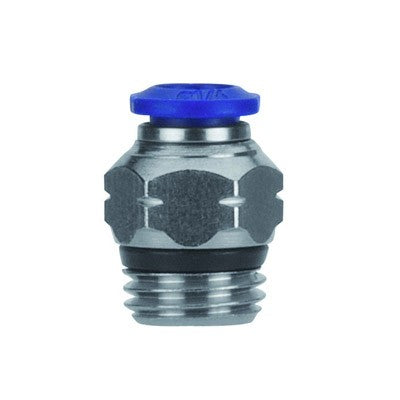

88020-04-32 by AIGNEP | 87 / 88 Series | 1/4" Tube x 10/32 UNF Male | Straight | Pack of 10
88020-04-32 by AIGNEP | 87 / 88 Series | 1/4" Tube x 10/32 UNF Male | Straight | Pack of 10

88020-04-32 by AIGNEP | 87 / 88 Series | 1/4" Tube x 10/32 UNF Male | Straight | Pack of 10

Sale price$31.04

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $29.18
40–79 $26.38
80+ $23.28
Discounts applied in cart/checkout.

Product Data:

Series:
  • 87/88 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Push-to-Connect
  • 10-32 Male UNF

Straight Male

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A B (IN) B L CH1 CH2
88020-02-32 1/8" 10-32 0.157" 4 mm 18 mm 8 mm 2 mm
88020-53-32 5/32" 10-32 0.157" 4 mm 21 mm 10 mm 2 mm
88020-04-32 1/4" 10-32 0.157" 4 mm 23.5 mm 13 mm 2 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
