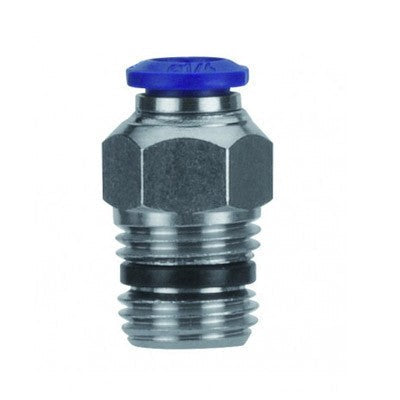

88000-02-02 by AIGNEP | 87 / 88 Series | 1/8" Tube x 1/8" Male NPTF | Straight | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $25.56 |
| 40–79 | $23.11 |
| 80+ | $20.39 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Straight Male
Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: NPTF
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: NPTF
| Product Number | Tube | A NPTF | Thread Type | B (IN) | B | L | CH1 | CH2 |
|---|---|---|---|---|---|---|---|---|
| 88000-02-02 | 1/8" | 1/8" | NPTF | 0.335" | 8.5 mm | 19.5 mm | 11 mm | 2 mm |
| 88000-02-04 | 1/8" | 1/4" | NPTF | 0.512" | 13 mm | 24.5 mm | 14 mm | 2 mm |
| 88000-53-02 | 5/32" | 1/8" | NPTF | 0.335" | 8.5 mm | 21 mm | 11 mm | 3 mm |
| 88000-53-04 | 5/32" | 1/4" | NPTF | 0.512" | 13 mm | 25 mm | 14 mm | 3 mm |
| 88000-04-02 | 1/4" | 1/8" | NPTF | 0.335" | 8.5 mm | 26 mm | 13 mm | 4 mm |
| 88000-04-04 | 1/4" | 1/4" | NPTF | 0.512" | 13 mm | 27 mm | 14 mm | 4 mm |
| 88000-04-06 | 1/4" | 3/8" | NPTF | 0.512" | 13 mm | 29 mm | 18 mm | 4 mm |
| 88000-05-02 | 5/16" | 1/8" | NPTF | 0.335" | 8.5 mm | 27 mm | 14 mm | 5 mm |
| 88000-05-04 | 5/16" | 1/4" | NPTF | 0.512" | 13 mm | 27.5 mm | 14 mm | 6 mm |
| 88000-05-06 | 5/16" | 3/8" | NPTF | 0.512" | 13 mm | 27.5 mm | 18 mm | 6 mm |
| 88000-06-02 | 3/8" | 1/8" | NPTF | 0.335" | 8.5 mm | 32 mm | 17 mm | 5 mm |
| 88000-06-04 | 3/8" | 1/4" | NPTF | 0.512" | 13 mm | 33.5 mm | 17 mm | 7 mm |
| 88000-06-06 | 3/8" | 3/8" | NPTF | 0.512" | 13 mm | 33.5 mm | 18 mm | 7 mm |
| 88000-06-08 | 3/8" | 1/2" | NPTF | 0.669" | 17 mm | 33.5 mm | 22 mm | 7 mm |
| 88000-08-04 | 1/2" | 1/4" | NPTF | 0.512" | 13 mm | 39 mm | 20 mm | 5 mm |
| 88000-08-06 | 1/2" | 3/8" | NPTF | 0.512" | 13 mm | 36 mm | 20 mm | 9 mm |
| 88000-08-08 | 1/2" | 1/2" | NPTF | 0.669" | 17 mm | 40 mm | 22 mm | 9 mm |
