BS088 - #88 Beltservice PVC - 100 Black Chevron Top II x BR MOR Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Applications:
Incline/Decline Conveying Grains Food Stuffs Feeds Fertilizers Tubeveyors
Features:

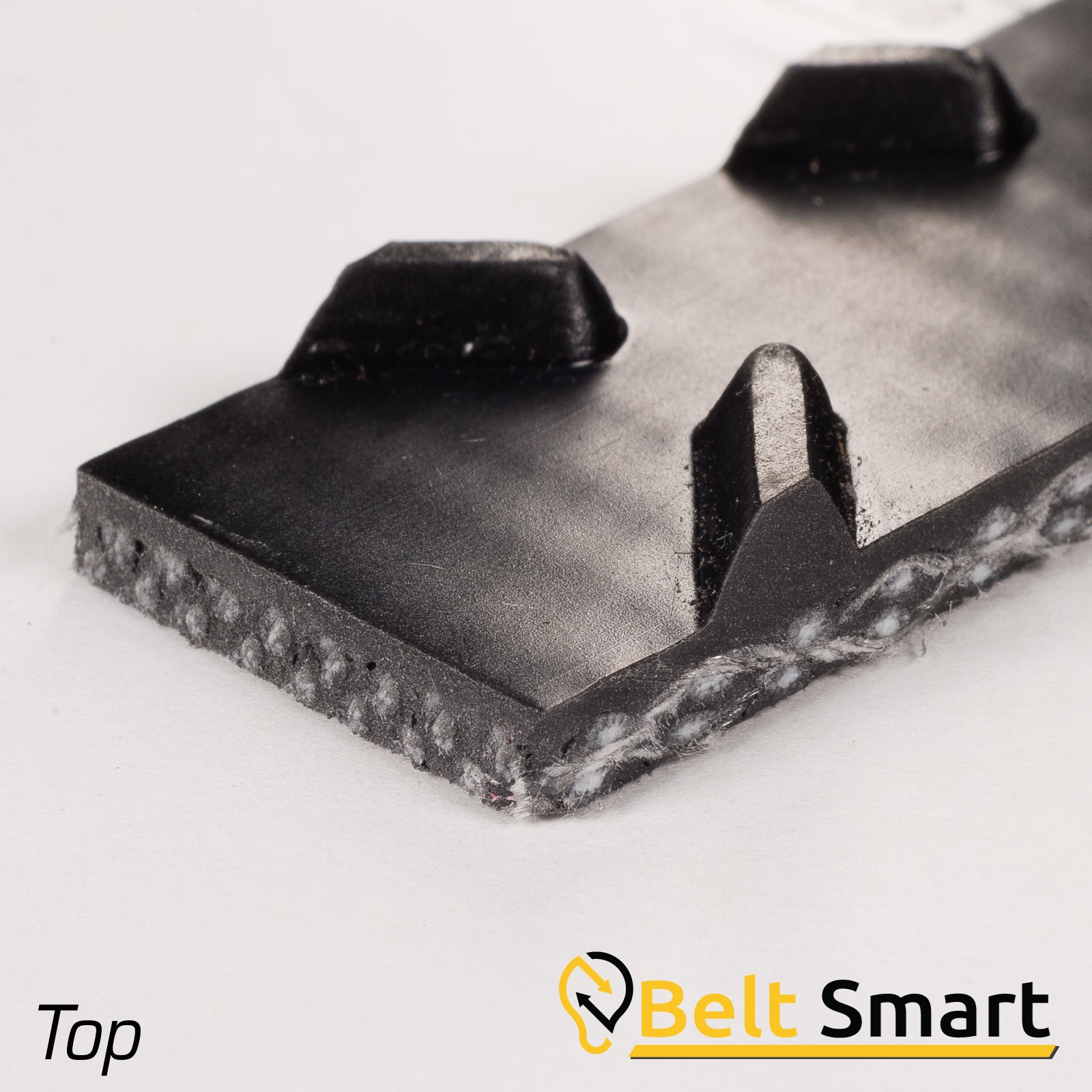

The herringbone pattern of alternating rows of solid PVC chevrons forms a cover highly capable of moving bulk, free-flowing materials such as grains, food stuffs, feeds, and fertilizers up steep inclines. This moderately oil resistant belt is ideal for tubeveyors.

	PVC - 100 Black Chevron Top II x BR MOR Pt No.: 88
Thickness	15/64"
Covers	CT-2 x FS
Safe Work Load PIW Conveyor	100 lbs.
Safe Work Load PIW Elevator Allowable	NR
Safe Work Load PIW Elevator Preferred	NR
Max Bucket Projection Grain	NR
Max Bucket Projection Industrial	NR
Min. Pulley Diameter Conveyor/Elevator	2-1/2"/NR
Temperature Range	0 deg. F / 180 deg. F
Approx. Weight Lbs. Per Inch Width	.089 lbs.
Clipper Lace	#1
Alligator Lace	#7
Alligator Staple / Flexco SR	#125

FS = Friction Surface
NR = Not Rated
CT-2 = Chevron Top II
MOR = Medium Oil Resistance
