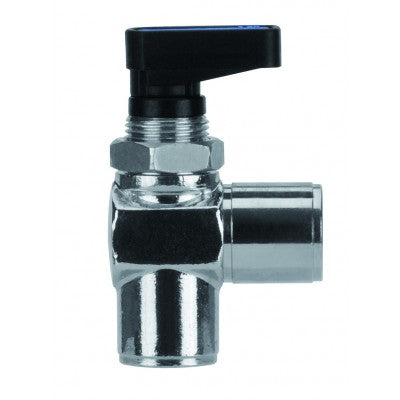

86720-06 by AIGNEP | Ball Valves Series | Ball Valve | Female 3/8" NPTF | 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $15.75 |
| 40–79 | $14.24 |
| 80+ | $12.56 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Right Angle Ball Valve
Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Media: Air, oil, water, (Consult factory for seal compatibility)
Body: Chrome Plated Brass
Thread Type: NPTF
Temperature Range: 0-176° F
Media: Air, oil, water, (Consult factory for seal compatibility)
Body: Chrome Plated Brass
Thread Type: NPTF
| Product Number | Color Plate | Thread Type | L | Orifice | A/B | Es1 | Es2 | S Max | G | H1 | H2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 86720-02 | Composite | NPTF | 37.5 mm | 5.5 mm | 1/8" | 17 mm | 17 mm | 4.5 mm | 19 mm | 33.5 mm | 16.5 mm | |
| 86720-04 | Composite | NPTF | 37.5 mm | 5.5 mm | 1/4" | 17 mm | 17 mm | 4.5 mm | 19 mm | 33.5 mm | 16.5 mm | |
| 86720-06 | Composite | NPTF | 39 mm | 7 mm | 3/8" | 17 mm | 21 mm | 4.5 mm | 19 mm | 35 mm | 22 mm |
