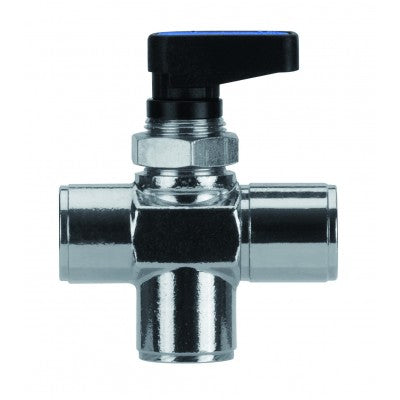

86700-04 by AIGNEP | Ball Valves Series | 3-Position Ball Valve Closed Center | Female 1/4" NPTF
86700-04 by AIGNEP | Ball Valves Series | 3-Position Ball Valve Closed Center | Female 1/4" NPTF

86700-04 by AIGNEP | Ball Valves Series | 3-Position Ball Valve Closed Center | Female 1/4" NPTF

Sale price$16.75
Buy More, Save More!
Quantity Price Each
10–39 $15.75
40–79 $14.24
80+ $12.56
Discounts applied in cart/checkout.

Product Data:

Series:
  • Ball Valves Series
Shape:

Tee

Ends Configuration:
  • 1/4in Female NPTF
  • 1/4in Female NPTF
  • Some Ends Match

Three Position (CLOSED CENTER)

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Media: Air, oil, water, (Consult factory for seal compatibility)
Body: Chrome Plated Brass
Thread Type: NPTF

Product Number Color Plate Thread Type L Orifice Es1 Es2 S Max A/B/C G H1 H2
86700-04 Composite NPTF 37.5 mm 5.5 mm 17 mm 17 mm 4.5 mm 1/4" 19 mm 33.5 mm 16.5 mm
86700-06 Composite NPTF 48.5 mm 7 mm 17 mm 21 mm 4.5 mm 3/8" 19 mm 35 mm 22 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
