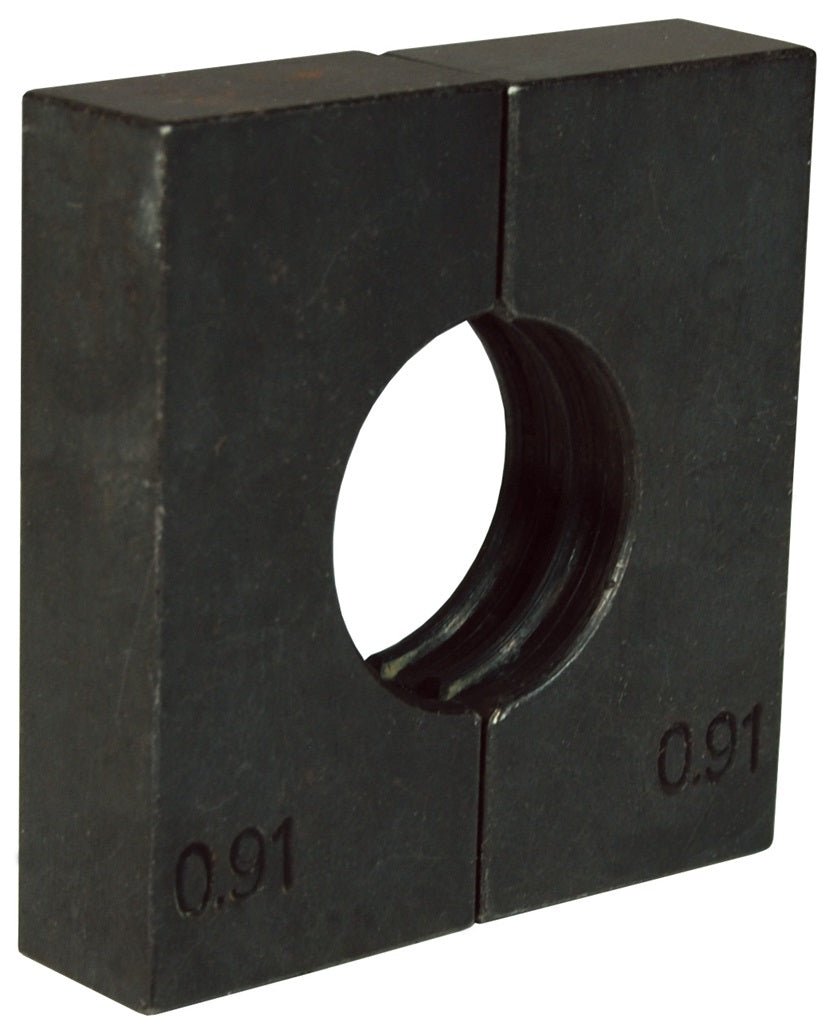

861-29 by Dixon Valve | Large Hose Crimper Die | for 860 Series Crimper | 29/32" Finished Crimp Dimension | For Hose OD: from 0.906" to 0.985"
Dixon Valve
Large Hose Crimper Die
For crimping 1/2" to 1" (15mm to 25mm) ID hoses with larger OD's, from 11/16" to 1-1/2" (22mm to 40mm).
Crimps standard brass or aluminum ferrules.
Use with Dixon's 860 Large Hose Crimper.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $40.06 |
| 40–79 | $36.23 |
| 80+ | $31.97 |
Discounts applied in cart/checkout.
Product Data:
Series:
| Notes: | |||
|---|---|---|---|
|
| Large Hose Crimper Dies for 860 Series Crimper | |||
|---|---|---|---|
| Die Part | Hose OD/ Finished Crimp Dimension |
Hose OD | |
| from | to | ||
| 861-22 | 11/16" | 0.687" | 0.765" |
| 861-23 | 23/32" | 0.718" | 0.796" |
| 861-24 | 3/4" | 0.750" | 0.828" |
| 861-25 | 25/32" | 0.781" | 0.860" |
| 861-26 | 13/16" | 0.812" | 0.890" |
| 861-27 | 27/32" | 0.843" | 0.921" |
| 861-28 | 7/8" | 0.875" | 0.953" |
| 861-29 | 29/32" | 0.906" | 0.985" |
| 861-30 | 15/16" | 0.937" | 1.010" |
| 861-31 | 31/32" | 0.968" | 1.040" |
| 861-32 | 1" | 1.000" | 1.070" |
| 861-33 | 1-1/32" | 1.031" | 1.110" |
| 861-34 | 1-1/16" | 1.062" | 1.114" |
| 861-36 | 1-1/8" | 1.125" | 1.208" |
| 861-38 | 1-3/16" | 1.187" | 1.265" |
| 861-40 | 1-1/4" | 1.250" | 1.321" |
| 861-42 | 1-5/16" | 1.312" | 1.390" |
| 861-44 | 1-3/8" | 1.375" | 1.453" |
| 861-46 | 1-7/16" | 1.437" | 1.551" |
| 861-48 | 1-1/2" | 1.500" | 1.578" |
