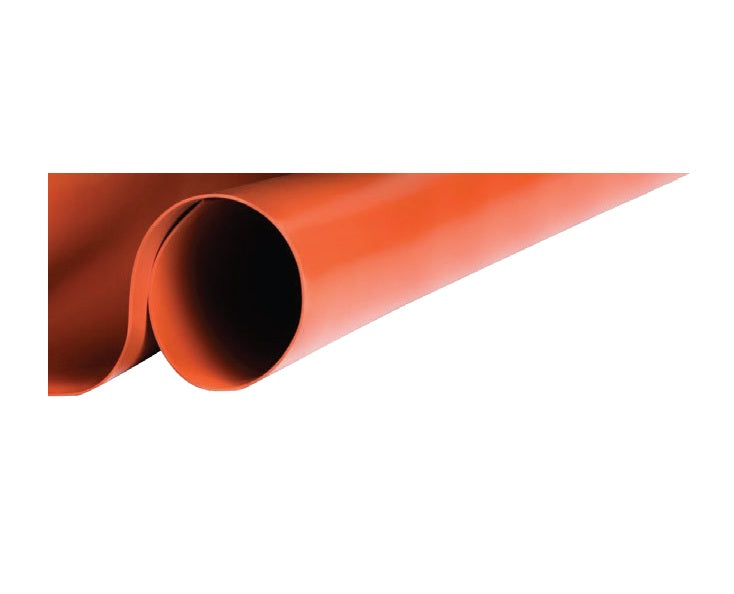

861-08-362 American Biltrite by Kuriyama | IM-S60 Series | Terracotta Red Sheet Rubber | 1/8" Gauge x 36" Width | 60 +/- 5 Durometer | Silicone Rubber | 50ft per Roll
Package Quantity: 50 FT
Buy more, save moreDiscounts applied in cart/checkout.
What are the Features?
- Excellent resistance to extreme temperatures.
- High tear resistance.
- Low compression set.
- Excellent resistance to UV, ozone, and weathering.
- Resists most fluids encountered in general industrial applications.
What are the Materials?
- Silicone Rubber
What are the Specifications?
- ASTM Specification (SI units): ASTM D2240
- Temperature Range: -80° to 450°F (-62° to 232°C)
- Durometer: 60 +/- 5
- Tensile Strength (PSI): 800 PSI typical
- Elongation (%): 400 typical
- Grade: Industrial
- Finish: Smooth
- Powder: No
- Color: Terracotta red
- Note: The maximum temperature is for instantaneous and not continuons applications.
| Part Number | Gauge x Width (in) |
Avg. Length (Linear Ft. /Roll) |
Surface (sft) |
Approx. Lbs./Roll |
|---|---|---|---|---|
| 861-04-362 | 1/16 x 36" | 50ft | 150 | 61 lbs |
| 861-08-362 | 1/8 x 36" | 50ft | 150 | 122 lbs |
| 861-16-362 | 1/4 x 36" | 50ft | 150 | 245 lbs |
Note: Material is within commercial sheet rubber gauge tolerances.
Please ensure the product meets your application specification prior to order placement.
