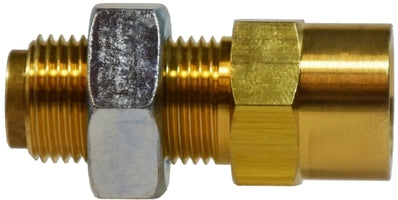

860402 by Midland | DOT Push-In Fitting | Female Bulkhead Union | 1/4" Tube OD x 1/8" Female NPTF | Straight | Brass

860402 by Midland | DOT Push-In Fitting | Female Bulkhead Union | 1/4" Tube OD x 1/8" Female NPTF | Straight | Brass

Sale price$14.77
Buy more, save moreDiscounts applied in cart/checkout.
Working Pressure: Vacuum to 150 PSI Temperature Range: -40°F to 200° F ( -40°C to +93°C )
Features:
  • Fast Assembly: No tools required. Simply push tubing in. Saves up to 75% of assembly time compared to standard air compression fittings. No loose parts to handle.
  • Fast Disconnect: Hold the collet collar with two fingers and pull out tube. No tools required.
  • Reusable: Can be connected and disconnected several times.
  • Reliable Sealing: Using recommended tubing, full sealing is guaranteed.
  • Versatility: Buna N O'ring standard. Viton and others available per request. Secure tube retention. Pulling on tubing only serves to tighten the connection.
  • Pre-Applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor.
  • Full Flow Design
Materials:
  • Brass
  • "O" Ring: Buna - Nitrile (90 Durometer) EP (Ethylene Propylene)
Crossover Series:
AQ86DOT DQ86 1873 DQ86DOT 66PMTBH
Part Number Tube OD x Female NPTF Approx. Weight
(Lbs.)
860402 1/4" x 1/8" 0.08
860404 1/4" x 1/4" 0.10
860604 3/8" x 1/4" 0.31
860606 3/8" x 3/8" 0.31
860808 1/2" x 1/2" 0.32

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/8in Female NPTF
Material(s):
  • Brass

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
