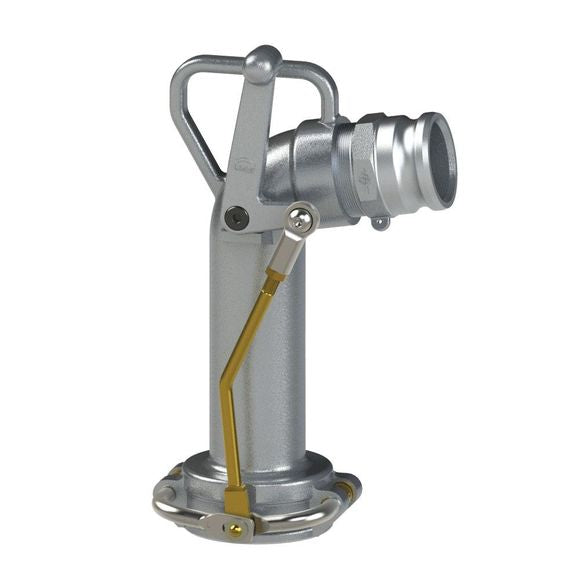

86003200 (UVR300) by PT-Coupling | Petroleum Handling Dual Point Vapor Recovery Elbow | Complete Assembly (Short)

86003200 (UVR300) by PT-Coupling | Petroleum Handling Dual Point Vapor Recovery Elbow | Complete Assembly (Short)

Sale price$426.63

PT Coupling
Petroleum Handling Dual Point Vapor Recovery Elbow | Complete Assembly

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Buy More, Save More!
Quantity Price Each
5–14 $401.03
15–29 $362.64
30+ $319.97
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Handle does not require a locking feature (cams over center).
  • Adjustable linkage (linkage can be adjusted in the field, for older worn adapters).
  • Brass Cams are solid (no rollers).
  • Available in two heights.
  • 30F included (female straight threads w/ gasket.)
  • Optional parts may be substituted or added.
  • Half the moving/replacement parts, lightest weight in the industry.
    • UVR300 11.5 lb.
    • UVR300 Short 11.00 lb.
  • Made in the USA
Part
Name		 Item # Description
UVR300 86003100 Complete Assembly
UVR300 86003200 Complete Assembly Short
Optional Parts
Part
Name		 Item # Description
30F 1000630 3" Adapter x 3" Male NPT Thread
40X30F 60164030 4" Adapter x 3" Male NPT Thread
Repair Parts List
Ref # Item # Description
3 86004120 UTF40 Cam Assembly Kit
7 86004108 Actuation Lever Bolt
9 86004121 UTF Connecting Link Pin Kit
10 87224030-2 CSP-2 Push Rod
11 5504230 B30ASY Buna Fuel Gasket
12 1000630 30F Aluminum
13 5500240F BO8F Buna Fuel Gasket

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
