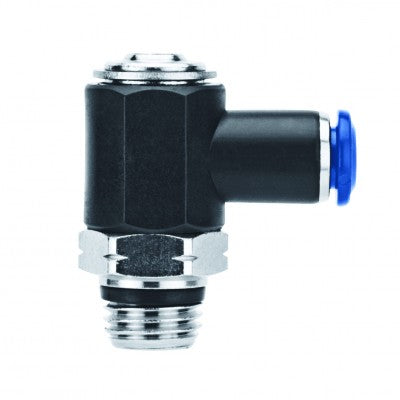

85953-53-32 by AIGNEP | Functional (Flow Controls) Series | Flow Control | 5/32" Tube x 10-32 Swift-Fit Male | Flow Out Screw Adjustment
85953-53-32 by AIGNEP | Functional (Flow Controls) Series | Flow Control | 5/32" Tube x 10-32 Swift-Fit Male | Flow Out Screw Adjustment

85953-53-32 by AIGNEP | Functional (Flow Controls) Series | Flow Control | 5/32" Tube x 10-32 Swift-Fit Male | Flow Out Screw Adjustment

Sale price$14.33
Buy More, Save More!
Quantity Price Each
10–39 $13.47
40–79 $12.18
80+ $10.75
Discounts applied in cart/checkout.

Product Data:

Series:
  • Functional (Flow Controls) Series
Shape:

90 Degree

Ends Configuration:
  • 5/32in Push-to-Connect
  • 10-32 Male UNF

Inch Tube Flow Control (OUT)

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Product Number Tube A B (IN) B L1 L2 CH Code
85953-02-32 1/8" 10-32 0.157" 4 mm 19 mm 24 mm 8 mm C
85953-02-02 1/8" 1/8" 0.217" 5.5 mm 21 mm 30.5 mm 14 mm C
85953-53-32 5/32" 10-32 0.157" 4 mm 19 mm 24 mm 8 mm C
85953-06-04 3/8'' 1/4" 0.295" 7.5 mm 30.5 mm 41 mm 20 mm C
