85700-06-05 by AIGNEP | 85 Series | Reducer | 3/8" Male Stud x 5/16" Tube | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $21.72 |
| 40–79 | $19.64 |
| 80+ | $17.33 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Tube Reducer Composite
Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

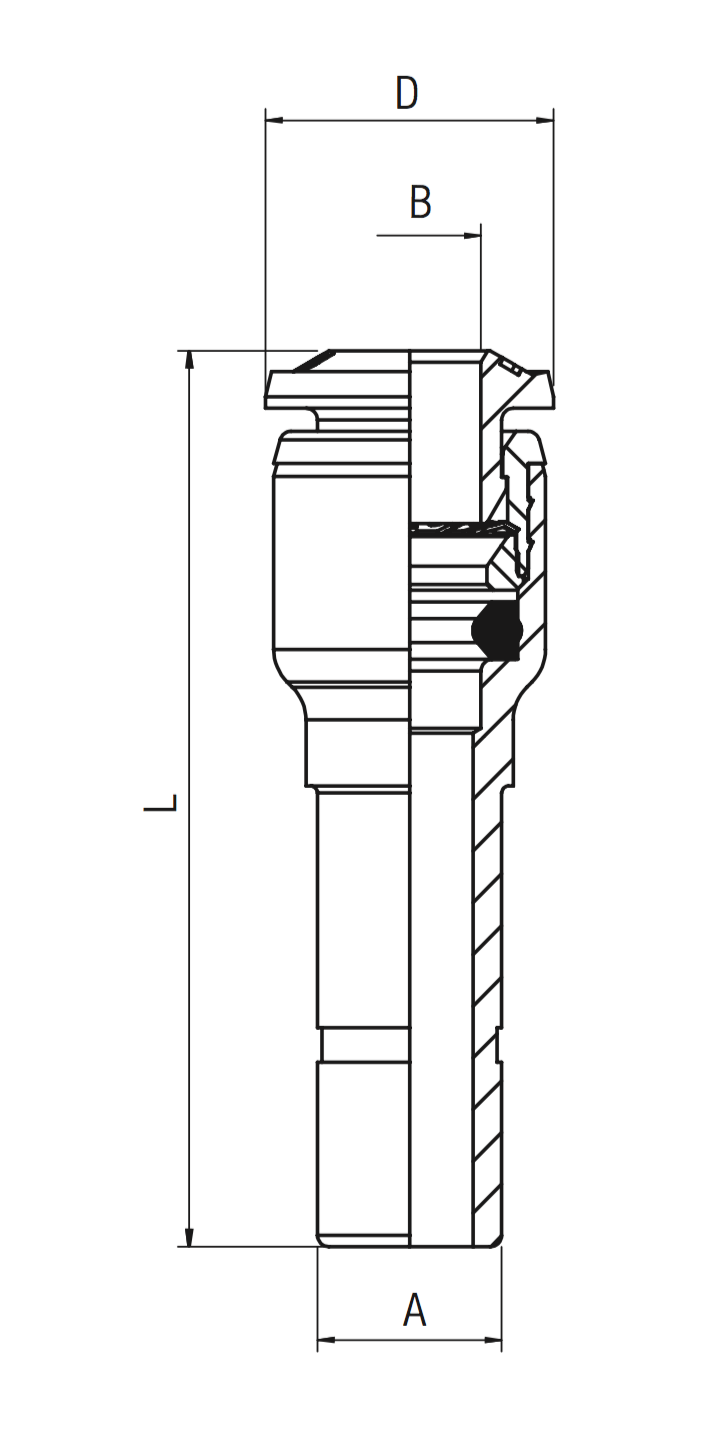

| Product Number | A | B | L | D |
|---|---|---|---|---|
| 85700-04-53 | 1/4" | 4 mm | 34 mm | 10 mm |
| 85700-05-53 | 5/16" | 4 mm | 38 mm | 12 mm |
| 85700-05-04 | 5/16" | 1/4" | 39 mm | 12.5 mm |
| 85700-06-04 | 3/8" | 1/4" | 42.5 mm | 12.5 mm |
| 85700-06-05 | 3/8" | 8 mm | 42 mm | 14 mm |
| 85700-08-04 | 1/2" | 1/4" | 38.5 mm | 12.5 mm |
| 85700-08-05 | 1/2" | 5/16" | 41.5 mm | 14 mm |
| 85700-08-06 | 1/2" | 3/8" | 48.5 mm | 17 mm |
