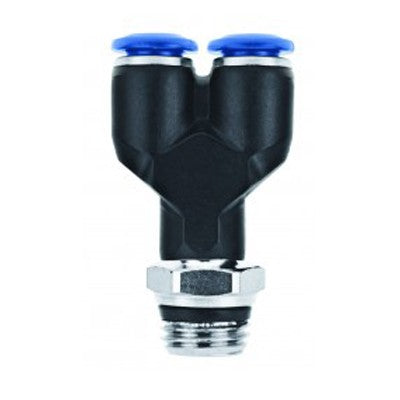

85340-53-04 by AIGNEP | 85 Series | 4 Position Swivel | 5/32" Tube x 1/4" Swift-Fit Male | Y | Pack of 10
85340-53-04 by AIGNEP | 85 Series | 4 Position Swivel | 5/32" Tube x 1/4" Swift-Fit Male | Y | Pack of 10

85340-53-04 by AIGNEP | 85 Series | 4 Position Swivel | 5/32" Tube x 1/4" Swift-Fit Male | Y | Pack of 10

Sale price$50.85

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $47.80
40–79 $43.22
80+ $38.14
Discounts applied in cart/checkout.

Product Data:

Series:
  • 85 Series
Shape:

Y

Ends Configuration:
  • 5/32in Push-to-Connect
  • 1/4in Male Swift-Fit
  • 5/32in Push-to-Connect
  • Some Ends Match

4 Position Y SWIFTFIT Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

Product Number Tube A B C L F CH H
85340-53-02 5/32" 1/8" 5.5 mm 5.5 mm 39.5 mm 3.3 mm 11 mm 21.5 mm
85340-53-04 5/32" 1/4" 7 mm 10.8 mm 42 mm 3.3 mm 14 mm 21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
