85240-04 by AIGNEP | 85 Series | Plug In | 1/4" Tube x 1/4" Stud | Tee | Pack of 10
85240-04 by AIGNEP | 85 Series | Plug In | 1/4" Tube x 1/4" Stud | Tee | Pack of 10

85240-04 by AIGNEP | 85 Series | Plug In | 1/4" Tube x 1/4" Stud | Tee | Pack of 10

Sale price$29.26

Package Quantity: 10 ea

Buy more, save moreDiscounts applied in cart/checkout.

Tee Plug In Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon

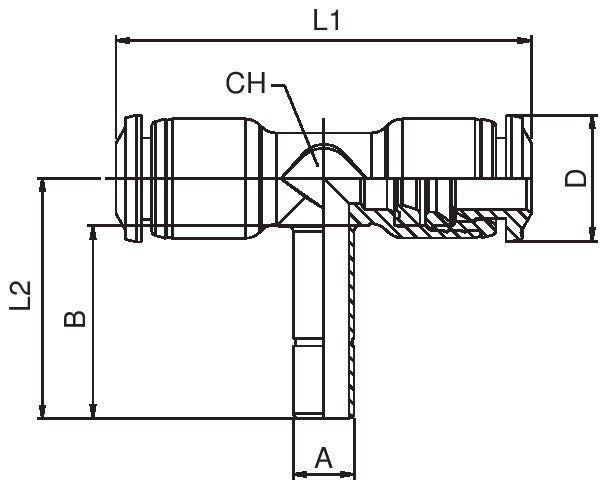

Product Number Tube A B L1 L2 CH D
85240-53 5/32" 5/32" 17 mm 33 mm 20.7 mm 7 mm 10 mm
85240-04 1/4" 1/4" 19 mm 41 mm 23.7 mm 9 mm 12.5 mm
85240-05 5/16" 5/16" 20 mm 44 mm 26 mm 10 mm 14 mm
85240-06 3/8" 3/8" 22.5 mm 53 mm 30 mm 13 mm 17 mm

Additional Product Data:

Series:
  • 85 Series
Shape:

Tee

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • Some Ends Match

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
