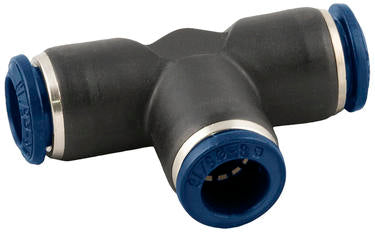

85230-06 by AIGNEP | 85 Series | Union Composite | 3/8" Tube | Tee | Pack of 10
85230-06 by AIGNEP | 85 Series | Union Composite | 3/8" Tube | Tee | Pack of 10

85230-06 by AIGNEP | 85 Series | Union Composite | 3/8" Tube | Tee | Pack of 10

Sale price$36.61

AIGNEP USA
85 Series - Union Tee Composite


Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $34.41
40–79 $31.12
80+ $27.46
Discounts applied in cart/checkout.

Product Data:

Series:
  • 85 Series
Shape:

Tee

Ends Configuration:
  • 3/8in Push-to-Connect
  • 3/8in Push-to-Connect
  • 3/8in Push-to-Connect
  • Some Ends Match
Specifications:
  • Pressure Rating: Vacuum-250 PSI
  • Temperature Range: 0-176° F
  • Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
  • Media: Compressed Air, Water
  • Body: Nylon
Product Number Tube L1 L2 CH D D1 D2
85230-02 1/8" 31 mm 15,5 mm 9 mm 10 mm 3 mm 3 mm
85230-53 5/32" 33 mm 16,5 mm 9 mm 10 mm 4 mm 4 mm
85230-04 1/4" 41 mm 20,5 mm 11 mm 12,5 mm 6 mm 6 mm
85230-05-04-05 5/16" x 1/4" (Branch) x 5/16" 45 mm 22,5 mm 13 mm 14 mm 6 mm 8 mm
85230-05 5/16" 44 mm 22 mm 13 mm 14 mm 8 mm 8 mm
85230-06 3/8" 53 mm 26,5 mm 16 mm 17 mm 10 mm 10 mm
85230-06-08-06 3/8" x 1/2" (Branch) x 3/8" 59.5 mm 30,5 mm 19 mm 20 mm 12 mm 10 mm
85230-08-06-08 1/2" x 3/8" (Branch) x 1/2" 61.5 mm 30 mm 19 mm 20 mm 10 mm 12 mm
85230-08 1/2" 61.5 mm 30 mm 19 mm 20 mm 12 mm 12 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
