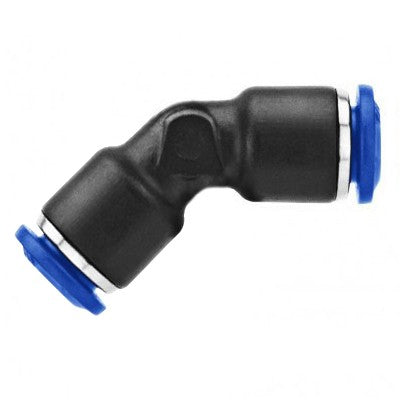

85180-05 by AIGNEP | 85 Series | Union | 5/16" Tube | 45° Elbow | Pack of 10
85180-05 by AIGNEP | 85 Series | Union | 5/16" Tube | 45° Elbow | Pack of 10

85180-05 by AIGNEP | 85 Series | Union | 5/16" Tube | 45° Elbow | Pack of 10

Sale price$24.80

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $23.31
40–79 $21.08
80+ $18.60
Discounts applied in cart/checkout.

Product Data:

Series:
  • 85 Series
Shape:

45 Degree

Ends Configuration:
  • 5/16in Push-to-Connect
  • 5/16in Push-to-Connect
  • Some Ends Match

45° Union Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon

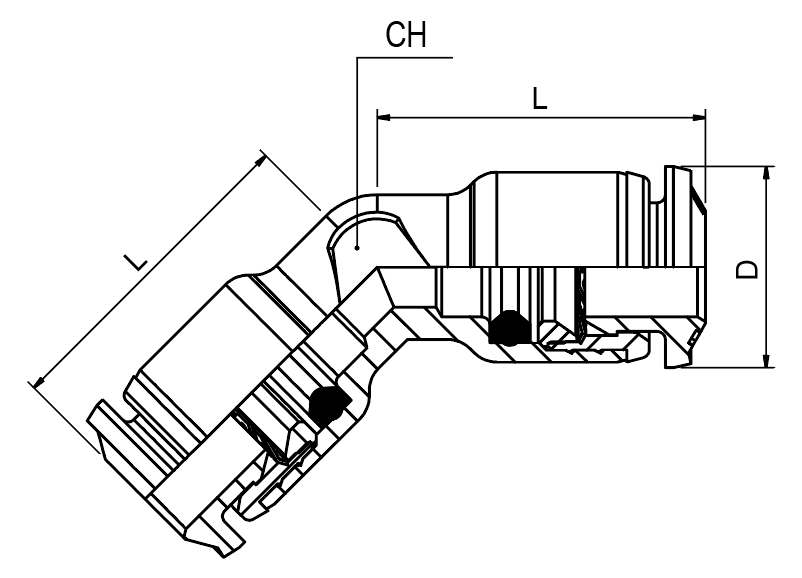

Product Number Tube L CH D
85180-53 5/32" 16.5 mm 7 mm 10 mm
85180-04 1/4" 20.5 mm 9 mm 12 mm
85180-05 5/16" 22 mm 10 mm 14 mm
85180-06 3/8" 26.5 mm 13 mm 17 mm
85180-08 1/2" 30 mm 16 mm 20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
