85160-08 by AIGNEP | 85 Series | Plug-In | 1/2" Tube x 1/2" Stud | 45° Elbow | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $20.68 |
| 40–79 | $18.70 |
| 80+ | $16.50 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
45° Swivel Elbow Composite
Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon

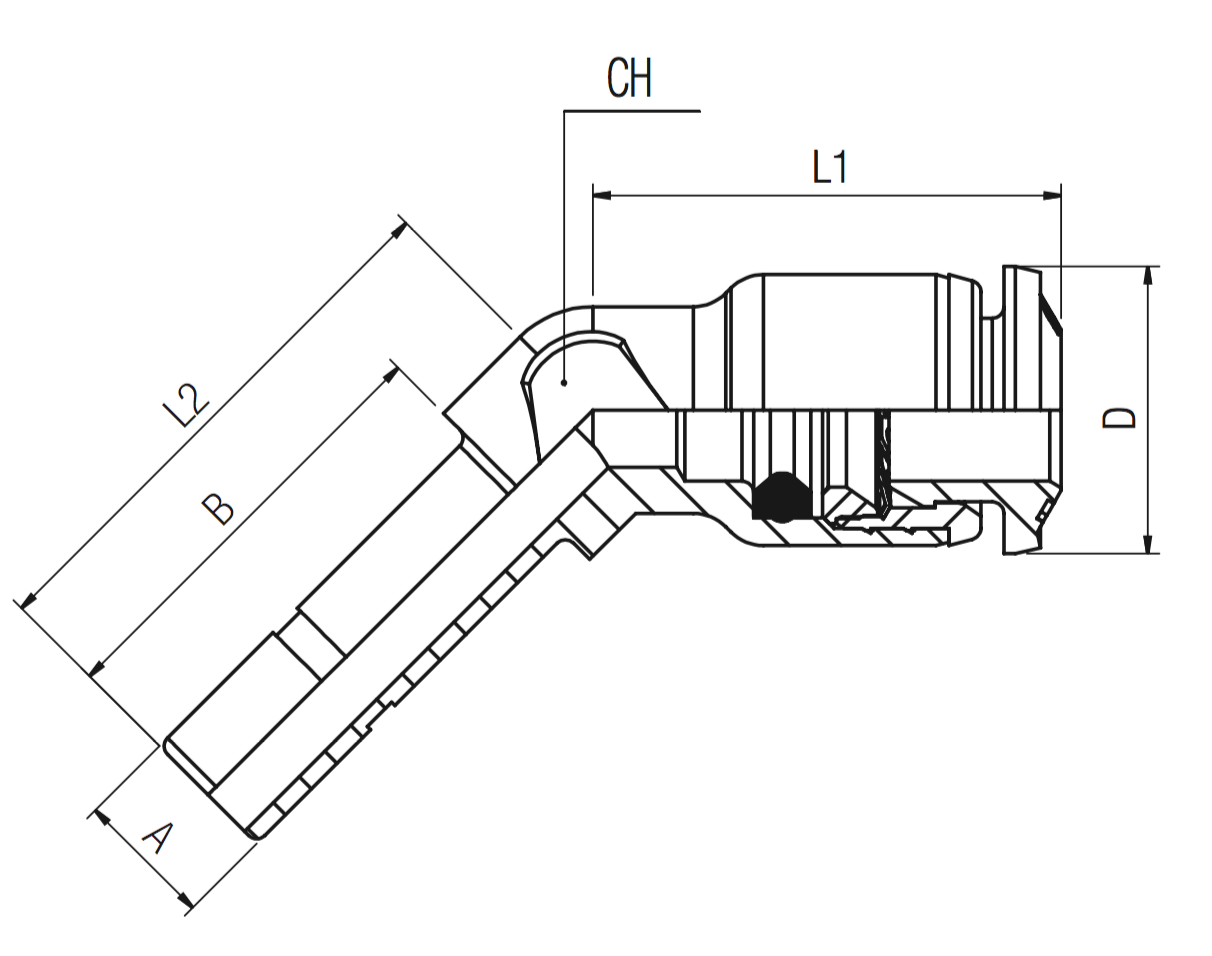

| Product Number | Tube | A | B (IN) | B | L1 | L2 | CH1 | D |
|---|---|---|---|---|---|---|---|---|
| 85160-53 | 5/32" | 5/32" | 0.669" | 17 mm | 12.5 mm | 21 mm | 7 mm | 10 mm |
| 85160-04 | 1/4" | 1/4" | 0.748" | 19 mm | 20.5 mm | 23.5 mm | 9 mm | 12 mm |
| 85160-05 | 5/16" | 5/16" | 0.787" | 20 mm | 22 mm | 25 mm | 10 mm | 14 mm |
| 85160-06 | 3/8'' | 3/8" | 0.886" | 22.5 mm | 26.5 mm | 30 mm | 13 mm | 17 mm |
| 85160-08 | 1/2'' | 1/2'' | 1.004" | 25.5 mm | 30 mm | 33.5 mm | 16 mm | 20 mm |
