85150-06 by AIGNEP | 85 Series | Plug-In | 3/8" Tube x 3/8" Stud Long | 90° Elbow | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.30 |
| 40–79 | $15.64 |
| 80+ | $13.80 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Elbow Plug In Composite
Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon

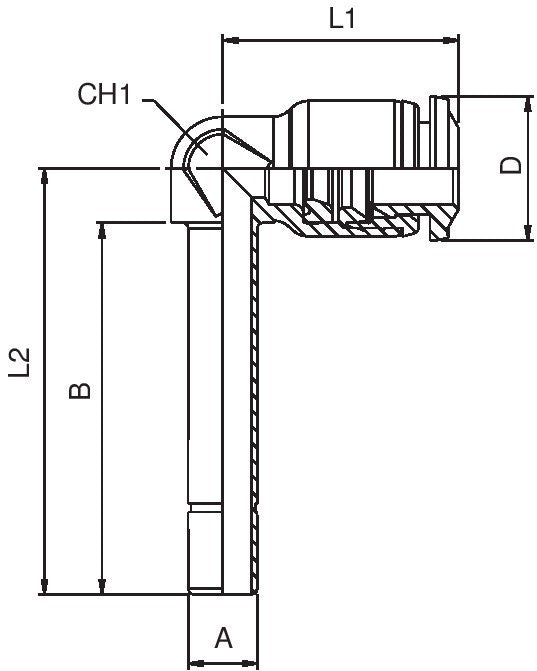

| Product Number | Tube | A | B (IN) | B | L1 | L2 | CH1 | D |
|---|---|---|---|---|---|---|---|---|
| 85150-53 | 5/32" | 5/32" | 1.102" | 28 mm | 16.5 mm | 31.8 mm | 7 mm | 10 mm |
| 85150-04 | 1/4" | 1/4" | 1.272" | 32.3 mm | 20.5 mm | 37 mm | 9 mm | 12.5 mm |
| 85150-05 | 5/16" | 5/16" | 1.417" | 36 mm | 22 mm | 42 mm | 10 mm | 14 mm |
| 85150-06 | 3/8" | 3/8" | 1.606" | 40.8 mm | 26.5 mm | 48.3 mm | 13 mm | 17 mm |
| 85150-08 | 1/2" | 1/2" | 1.850" | 47 mm | 31 mm | 55 mm | 16 mm | 20 mm |
