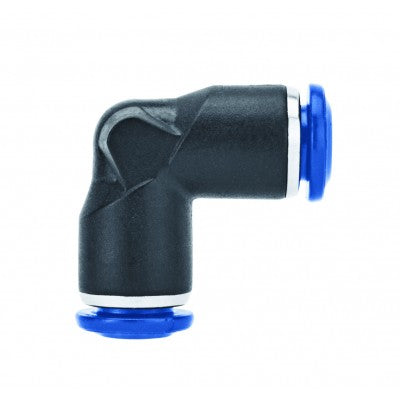

85130-04 by AIGNEP | 85 Series | Union Composite | 1/4" Tube | 90° Elbow | Pack of 10
85130-04 by AIGNEP | 85 Series | Union Composite | 1/4" Tube | 90° Elbow | Pack of 10

85130-04 by AIGNEP | 85 Series | Union Composite | 1/4" Tube | 90° Elbow | Pack of 10

Sale price$24.31

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $22.85
40–79 $20.66
80+ $18.23
Discounts applied in cart/checkout.

Product Data:

Series:
  • 85 Series
Shape:

90 Degree

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • Some Ends Match

Union Elbow Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nylon
Product Number Tube L CH D
85130-02 1/8" 15.5 mm 9 mm 10 mm
85130-53 5/32" 16.5 mm 9 mm 10 mm
85130-04 1/4" 20.5 mm 11 mm 12.5 mm
85130-05 5/16" 22 mm 13 mm 14 mm
85130-06 3/8" 26.5 mm 16 mm 17 mm
85130-08 1/2" 30.5 mm 19 mm 20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
