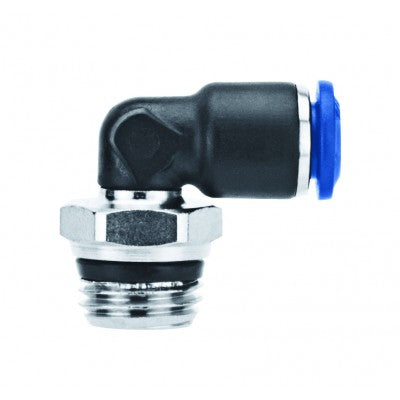

85110-06-08 by AIGNEP | 85 Series | Swivel Composite | 3/8" Tube x 1/2" Swift-Fit Male | 90° Elbow | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $38.31 |
| 40–79 | $34.64 |
| 80+ | $30.56 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Swivel Elbow Composite
Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT
| Product Number | Tube | A | B (IN) | B | L1 | L2 | CH1 | CH2 | D |
|---|---|---|---|---|---|---|---|---|---|
| 85110-02-02 | 1/8" | 1/8" | 0.216" | 5.5 mm | 15.5 mm | 16.5 mm | 7 mm | 13 mm | 10 mm |
| 85110-02-04 | 1/8" | 1/4" | 0.275" | 7 mm | 15.5 mm | 18 mm | 7 mm | 15 mm | 10 mm |
| 85110-53-32 | 5/32" | 10-32 | 0.157" | 4 mm | 16.5 mm | 14.5 mm | 7 mm | 9 mm | 10 mm |
| 85110-53-02 | 5/32" | 1/8" | 0.216" | 5.5 mm | 16.5 mm | 16.5 mm | 7 mm | 13 mm | 10 mm |
| 85110-53-04 | 5/32" | 1/4" | 0.275" | 7 mm | 16.5 mm | 18 mm | 7 mm | 15 mm | 10 mm |
| 85110-04-32 | 1/4" | 10-32 | 0.157" | 4 mm | 20.5 mm | 15.5 mm | 9 mm | 9 mm | 12.5 mm |
| 85110-04-02 | 1/4" | 1/8" | 0.216" | 5.5 mm | 20.5 mm | 17.5 mm | 9 mm | 13 mm | 12.5 mm |
| 85110-04-04 | 1/4" | 1/4" | 0.275" | 7 mm | 20.5 mm | 19 mm | 9 mm | 15 mm | 12.5 mm |
| 85110-04-06 | 1/4" | 3/8" | 0.295" | 7.5 mm | 20.5 mm | 20 mm | 9 mm | 17 mm | 12.5 mm |
| 85110-04-08 | 1/4" | 1/2" | 0.354" | 9 mm | 20.5 mm | 22 mm | 9 mm | 21 mm | 12.5 mm |
| 85110-05-02 | 5/16" | 1/8" | 0.216" | 5.5 mm | 22 mm | 18.5 mm | 10 mm | 13 mm | 14 mm |
| 85110-05-04 | 5/16" | 1/4" | 0.275" | 7 mm | 22 mm | 20 mm | 10 mm | 15 mm | 14 mm |
| 85110-05-06 | 5/16" | 3/8" | 0.295" | 7.5 mm | 22 mm | 20.5 mm | 10 mm | 17 mm | 14 mm |
| 85110-05-08 | 5/16" | 1/2" | 0.354" | 9 mm | 22 mm | 23 mm | 10 mm | 21 mm | 14 mm |
| 85110-06-04 | 3/8" | 1/4" | 0.275" | 7 mm | 26.5 mm | 22 mm | 13 mm | 16 mm | 17 mm |
| 85110-06-06 | 3/8" | 3/8" | 0.295" | 7.5 mm | 26.5 mm | 22 mm | 13 mm | 17 mm | 17 mm |
| 85110-06-08 | 3/8" | 1/2" | 0.354" | 9 mm | 26.5 mm | 24.5 mm | 13 mm | 21 mm | 17 mm |
| 85110-08-04 | 1/2" | 1/4" | 0.275" | 7 mm | 30.5 mm | 23 mm | 16 mm | 16 mm | 20 mm |
| 85110-08-06 | 1/2" | 3/8" | 0.295" | 7.5 mm | 30.5 mm | 23 mm | 16 mm | 17 mm | 20 mm |
| 85110-08-08 | 1/2" | 1/2" | 0.354" | 9 mm | 30.5 mm | 25.5 mm | 16 mm | 21 mm | 20 mm |
